This page shows you how to decommission one or more nodes. Decommissioning a node removes it from the CockroachDB cluster.

You might do this, for example, when downsizing a cluster or reacting to hardware failures.

Note:

Node decommissioning should not be performed when upgrading your cluster's version of CockroachDB or performing planned maintenance (e.g., upgrading system software). In these scenarios, you will want to temporarily stop the node and restart it later.

Overview

How it works

A node is considered to be decommissioned when it meets two criteria:

  1. The node has completed the decommissioning process.
  2. The node has been stopped and has not updated its liveness record for the duration configured via server.time_until_store_dead, which defaults to 5 minutes.

The decommissioning process transfers all range replicas on the node to other nodes. During and after this process, the node is considered "decommissioning" and continues to accept new SQL connections. Even without replicas, the node can still function as a gateway to route connections to relevant data. However, note that the /health?ready=1 monitoring endpoint considers the node "unready" and returns a 503 Service Unavailable status response code so load balancers stop directing traffic to the node. In v20.1, the health endpoint correctly considers the node "ready" during decommissioning.

After all range replicas have been transferred, a graceful shutdown is initiated by sending SIGTERM or running cockroach quit, during which the node is drained of SQL clients, distributed SQL queries, and range leases. Once draining completes and the process is terminated, the node stops updating its liveness record, and after the duration configured via server.time_until_store_dead is considered to be decommissioned.

You can check the status of node decommissioning with the CLI.

Considerations

Before decommissioning a node, make sure other nodes are available to take over the range replicas from the node. If no other nodes are available, the decommissioning process will hang indefinitely. See the Examples below for more details.

Examples

3-node cluster with 3-way replication

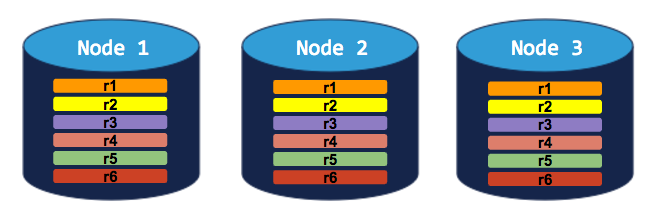

In this scenario, each range is replicated 3 times, with each replica on a different node:

Decommission Scenario 1

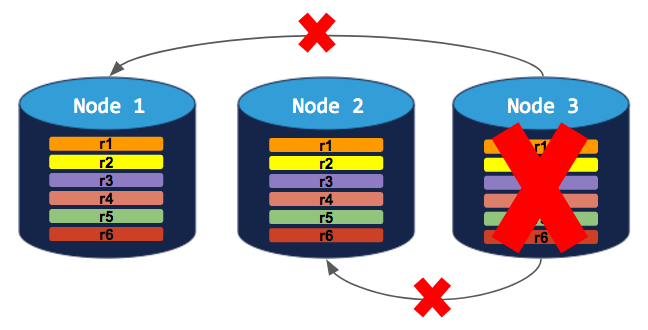

If you try to decommission a node, the process will hang indefinitely because the cluster cannot move the decommissioning node's replicas to the other 2 nodes, which already have a replica of each range:

Decommission Scenario 1

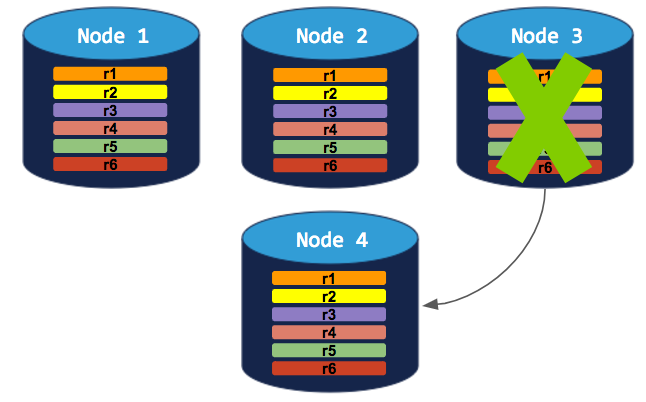

To successfully decommission a node in this cluster, you need to add a 4th node. The decommissioning process can then complete:

Decommission Scenario 1

5-node cluster with 3-way replication

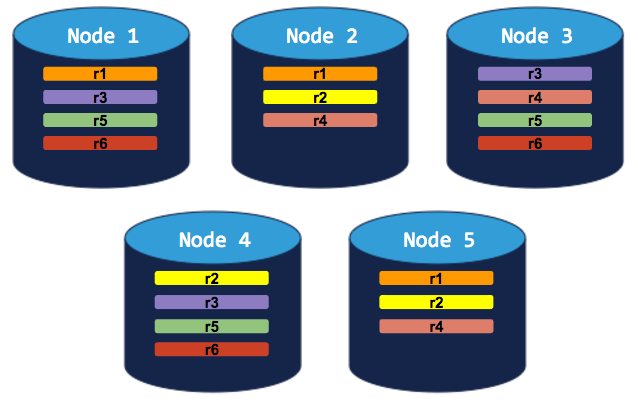

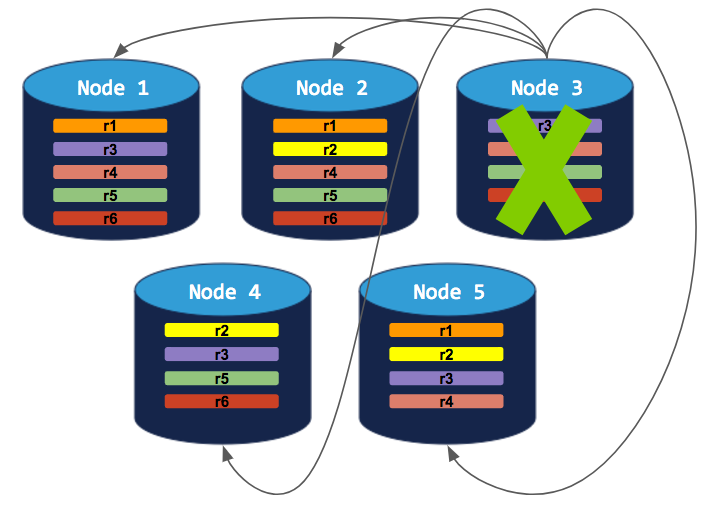

In this scenario, like in the scenario above, each range is replicated 3 times, with each replica on a different node:

Decommission Scenario 1

If you decommission a node, the process will run successfully because the cluster will be able to move the node's replicas to other nodes without doubling up any range replicas:

Decommission Scenario 1

5-node cluster with 5-way replication for a specific table

In this scenario, a custom replication zone has been set to replicate a specific table 5 times (range 6), while all other data is replicated 3 times:

Decommission Scenario 1

If you try to decommission a node, the cluster will successfully rebalance all ranges but range 6. Since range 6 requires 5 replicas (based on the table-specific replication zone), and since CockroachDB will not allow more than a single replica of any range on a single node, the decommissioning process will hang indefinitely:

Decommission Scenario 1

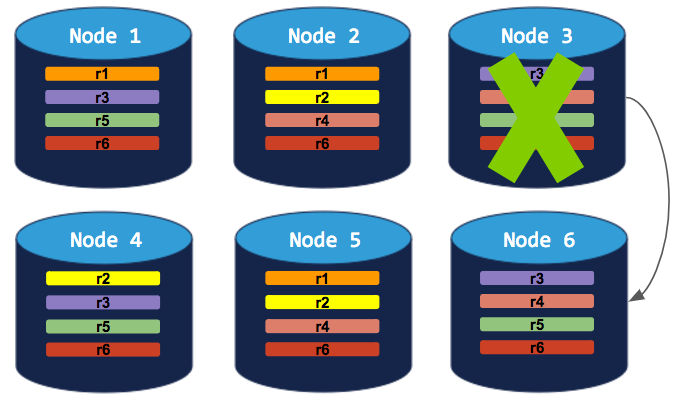

To successfully decommission a node in this cluster, you need to add a 6th node. The decommissioning process can then complete:

Decommission Scenario 1

Remove a single node (live)

Before decommissioning a node

To ensure your cluster can adequately handle decommissioning nodes:

  • Before decommissioning each node verify that there are no underreplicated or unavailable ranges.
  • If you have a decommissioning node that appears to be hung, you can recommission the node. If you notice any issues persisting, contact our support team.

    If possible, keep the node running instead of stopping it, because a hung decommissioning process might be a symptom of a problem that could result in data loss.

  • Confirm that there are enough nodes to take over the replicas from the node you want to remove. See some Example scenarios above.

Step 1. Get the ID of the node to decommission

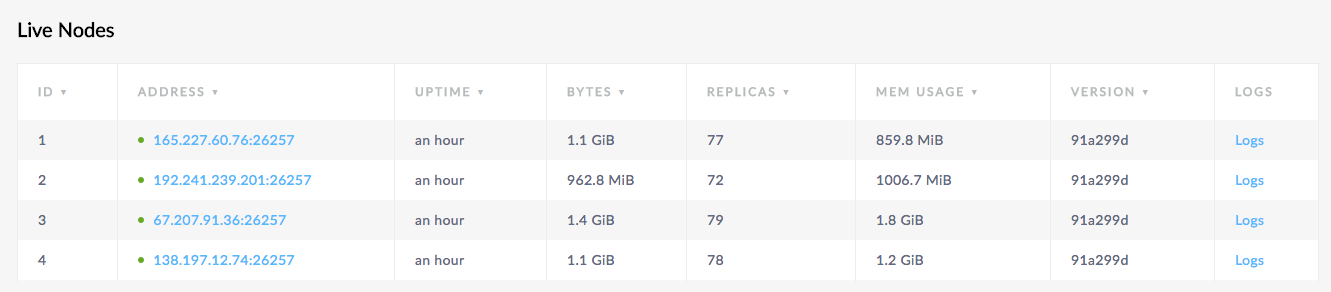

Open the Admin UI and select the Node List view, or go to Metrics on the left and click View nodes list in the Summary area. Note the ID of the node that you want to decommission:

Decommission a single live node

Step 2. Check the node before decommissioning

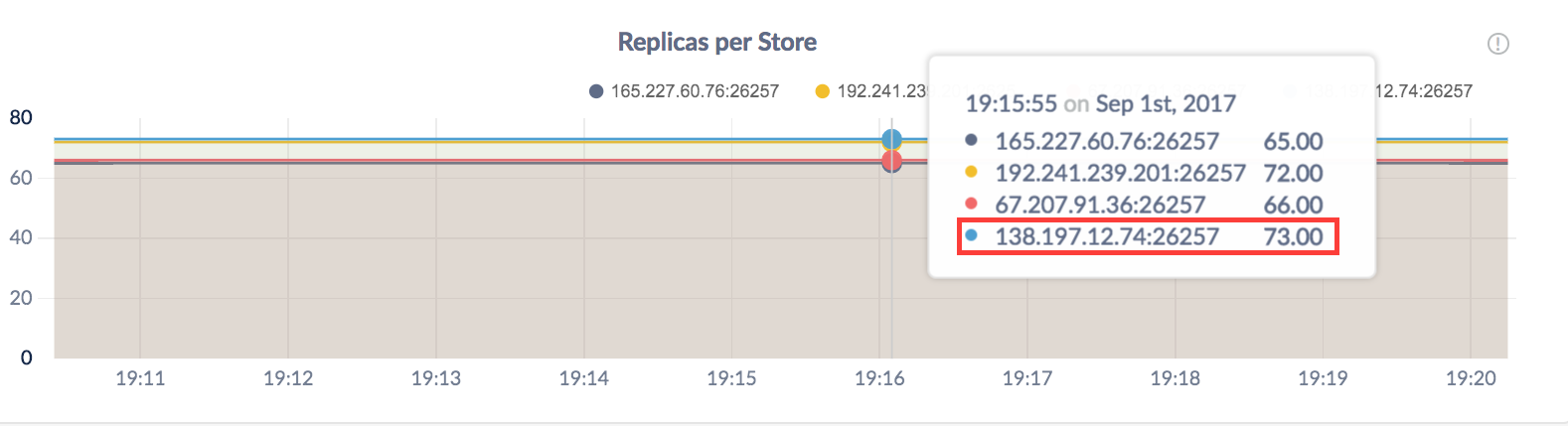

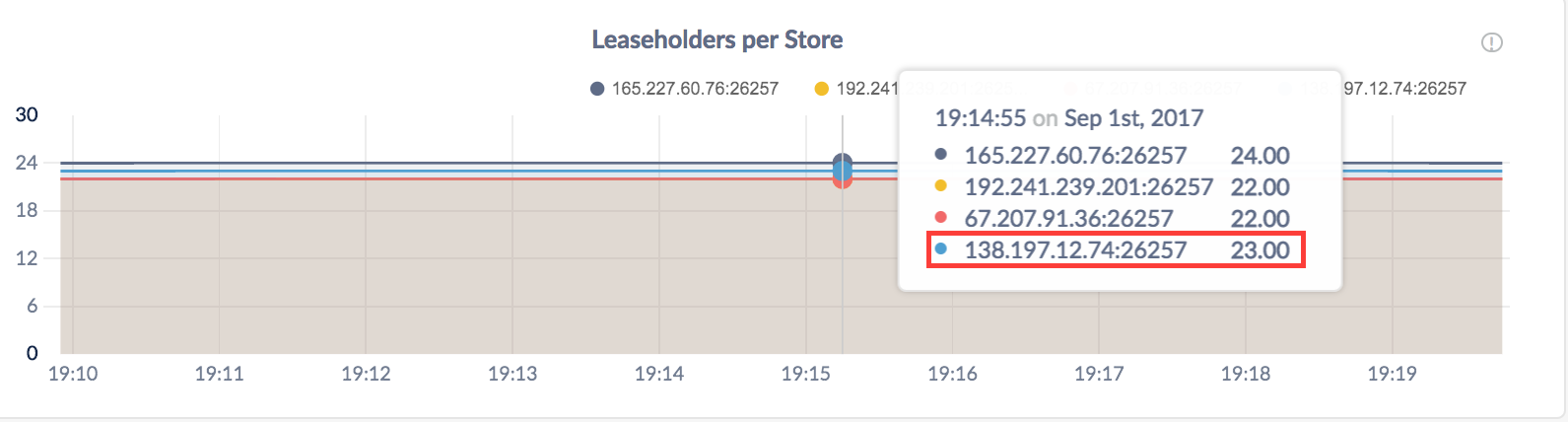

Open the Admin UI, click Metrics on the left, select the Replication dashboard, and hover over the Replicas per Store and Leaseholders per Store graphs:

Decommission a single live node
Decommission a single live node

Step 3. Start the decommissioning process on the node

Run the cockroach node decommission command with the ID of the node to decommission:

copy

icon/buttons/copy

$ cockroach node decommission 4 --certs-dir=certs --host=<address of any live node>

copy

icon/buttons/copy

$ cockroach node decommission 4 --insecure --host=<address of any live node>

You'll then see the decommissioning status print to stderr as it changes:

 id | is_live | replicas | is_decommissioning | is_draining
+---+---------+----------+--------------------+-------------+
  4 |  true   |       73 |        true        |    false
(1 row)

Once the node has been fully decommissioned and stopped, you'll see a confirmation:

 id | is_live | replicas | is_decommissioning | is_draining
+---+---------+----------+--------------------+-------------+
  4 |  true   |        0 |        true        |    false
(1 row)

No more data reported on target nodes. Please verify cluster health before removing the nodes.
ok

Note that is_decommissioning will remain true after all replicas have been transferred from the node.

Step 4. Check the node and cluster after the decommissioning process

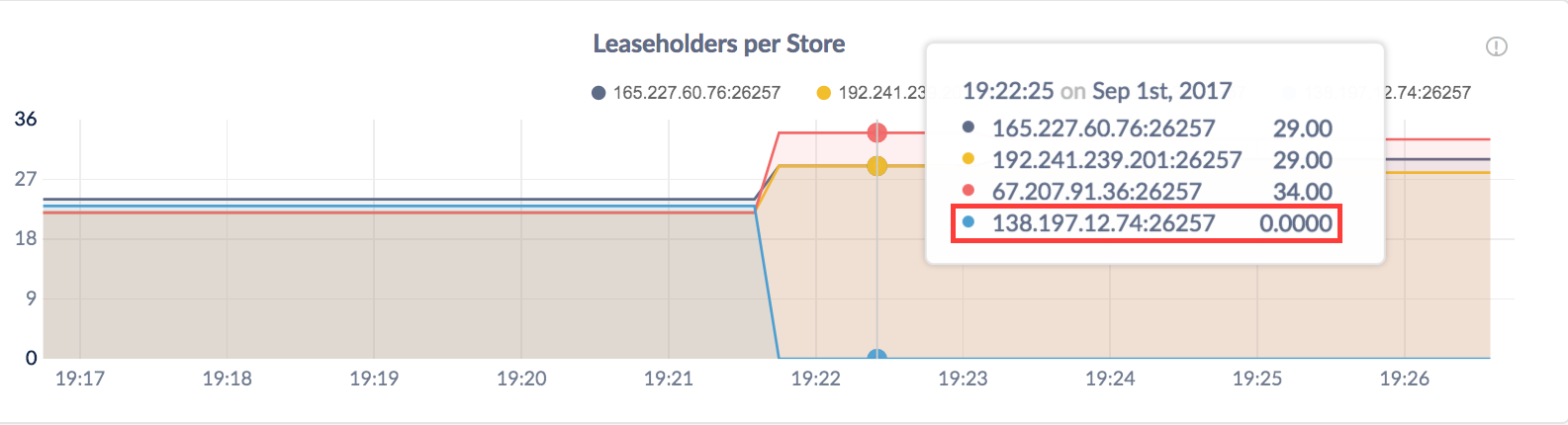

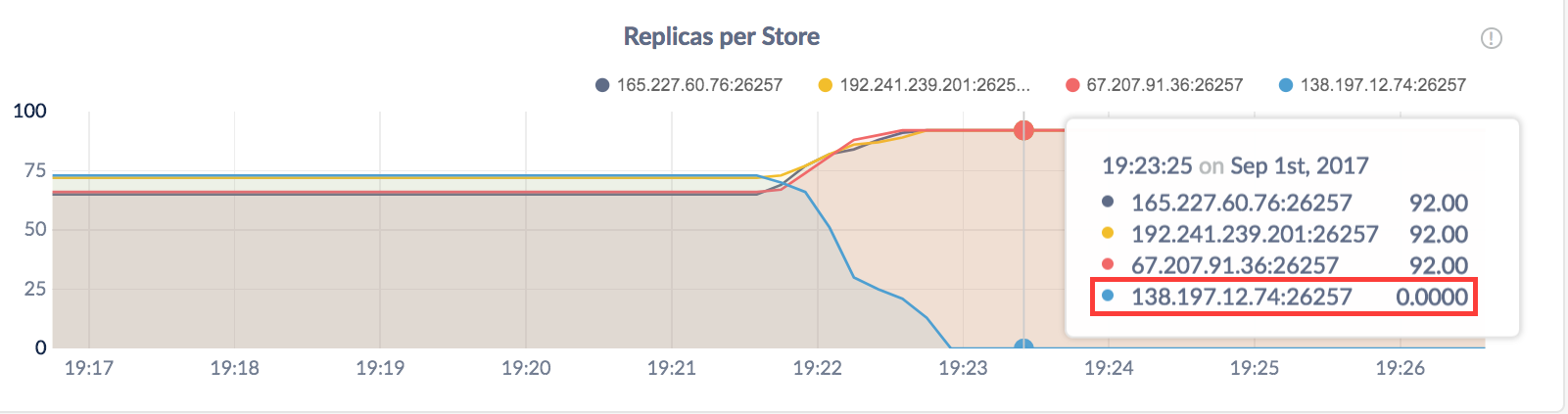

In the Admin UI Replication dashboard, again hover over the Replicas per Store and Leaseholders per Store graphs. For the decommissioning node, the counts should be 0:

Decommission a single live node
Decommission a single live node

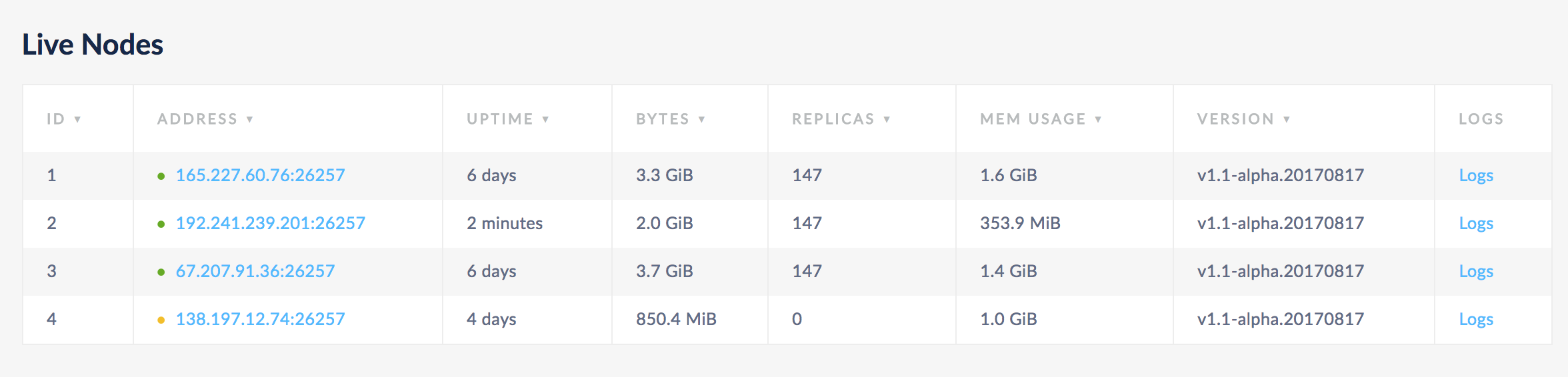

Then view Node List on the Overview page and make sure all nodes but the decommissioning node are healthy (green):

Decommission a single live node
Tip:

The node is counted as a "Suspect" node in the Admin UI Cluster Overview panel until it is shut down.

Step 5. Stop the decommissioning node

Execute the cockroach quit command:

copy

icon/buttons/copy

$ cockroach quit --certs-dir=certs --host=<address of decommissioned node>

copy

icon/buttons/copy

$ cockroach quit --insecure --host=<address of decommissioned node>

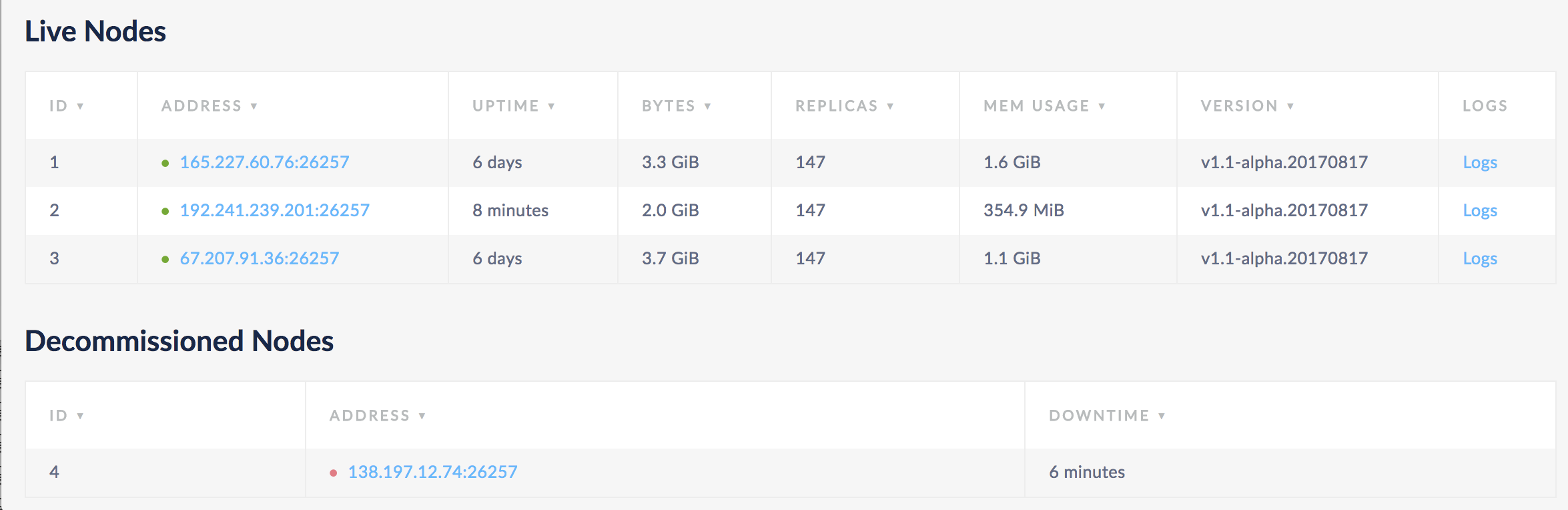

After the duration configured via server.time_until_store_dead, you'll see the removed node listed under Decommissioned Nodes:

Decommission a single live node

At this point, the node is decommissioned and will no longer appear in timeseries graphs unless you are viewing a time range during which the node was live. However, it will never disappear from the Decommissioned Nodes list.

Remove a single node (dead)

After a node has been dead for 5 minutes, CockroachDB transfers the range replicas and range leases on the node to available live nodes. However, if the dead node is restarted, the cluster will rebalance replicas and leases to the node.

To prevent the cluster from rebalancing data to a dead node if it comes back online, do the following:

Step 1. Get the ID of the dead node

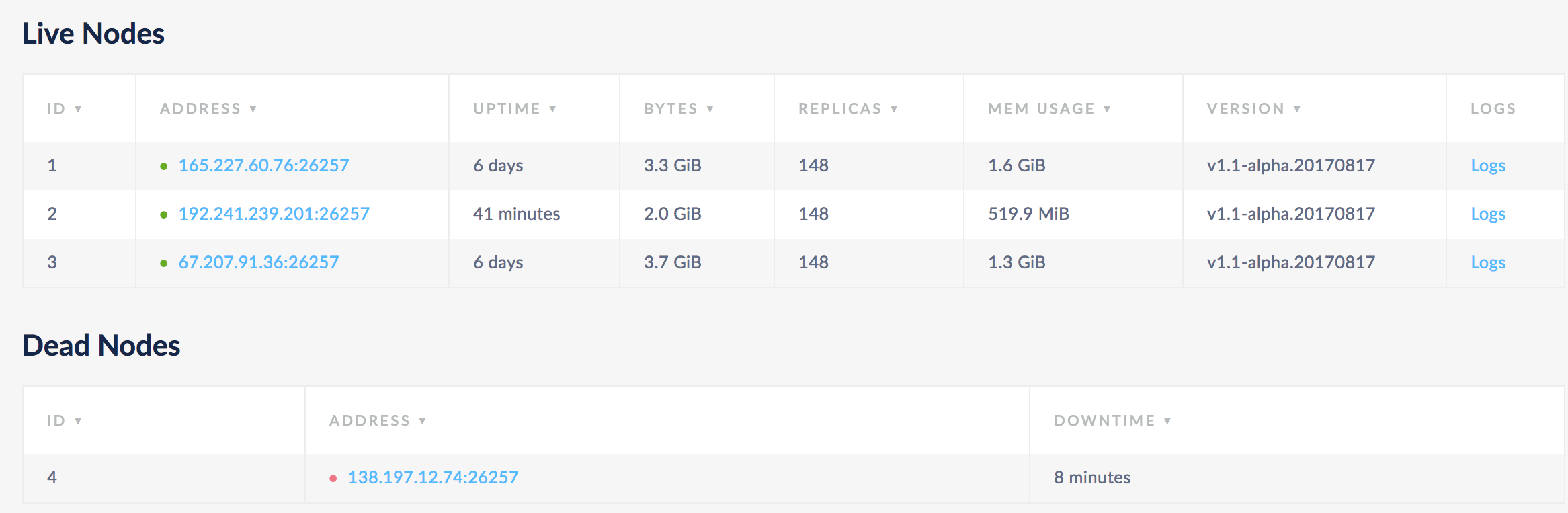

Open the Admin UI and select the Node List view. Note the ID of the node listed under Dead Nodes:

Decommission a single dead node

Step 2. Mark the dead node as decommissioned

Run the cockroach node decommission command with the ID of the node to decommission:

copy

icon/buttons/copy

$ cockroach node decommission 4 --certs-dir=certs --host=<address of any live node>

copy

icon/buttons/copy

$ cockroach node decommission 4 --insecure --host=<address of any live node>

 id | is_live | replicas | is_decommissioning | is_draining
+---+---------+----------+--------------------+-------------+
  4 |  false  |        0 |        true        |    true
(1 row)

No more data reported on target nodes. Please verify cluster health before removing the nodes.

If you go back to the Nodes List page, in about 5 minutes, you'll see the node move from the Dead Nodes to the Decommissioned Nodes list.

Decommission a single live node

At this point, the node is decommissioned and will no longer appear in timeseries graphs unless you are viewing a time range during which the node was live. However, it will never disappear from the Decommissioned Nodes list.

Note:

If you want to utilize a decommissioned node again, first recommission the node to have the cluster rebalance data to the node. Then restart the node so that it accepts new SQL connections.

Remove multiple nodes

Before decommissioning nodes

  • Before decommissioning each node verify that there are no underreplicated or unavailable ranges.
  • If you have a decommissioning node that appears to be hung, you can recommission the node. If you notice any issues persisting, contact our support team.

    If possible, keep the node running instead of stopping it, because a hung decommissioning process might be a symptom of a problem that could result in data loss.

  • Confirm that there are enough nodes to take over the replicas from the node you want to remove. See some Example scenarios above.

Step 1. Get the IDs of the nodes to decommission

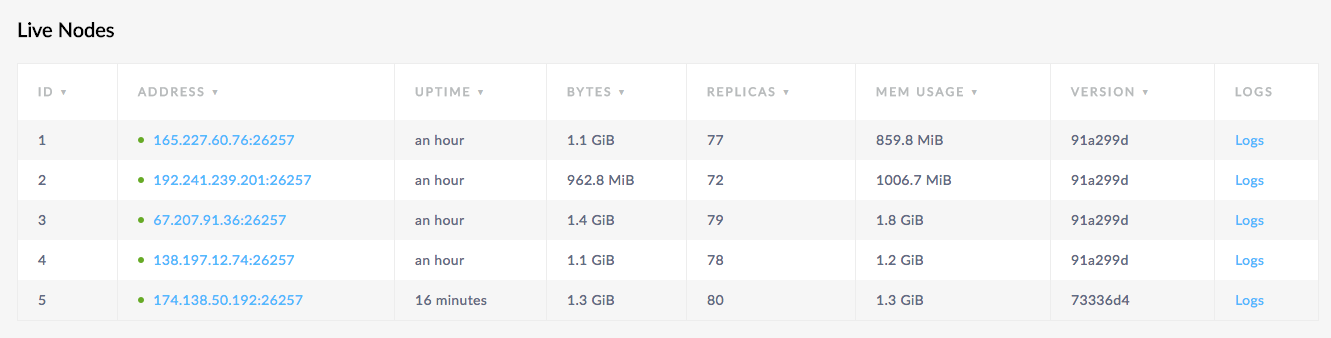

Open the Admin UI and select the Node List view, or go to Metrics on the left and click View nodes list in the Summary area. Note the IDs of the nodes that you want to decommission:

Decommission multiple nodes

Step 2. Check the nodes before decommissioning

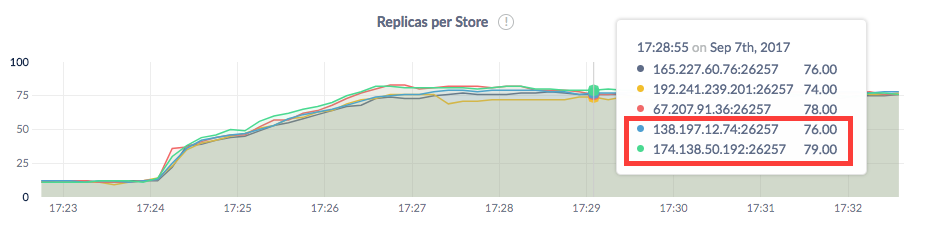

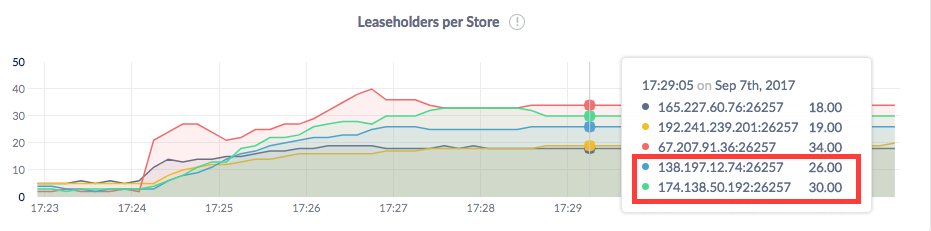

Select the Replication dashboard, and hover over the Replicas per Store and Leaseholders per Store graphs:

Decommission multiple nodes
Decommission multiple nodes

Step 3. Decommission the nodes

Run the cockroach node decommission command with the IDs of the nodes to decommission:

copy

icon/buttons/copy

$ cockroach node decommission 4 5 --certs-dir=certs --host=<address of any live node>

copy

icon/buttons/copy

$ cockroach node decommission 4 5 --insecure --host=<address of any live node>

You'll then see the decommissioning status print to stderr as it changes:

 id | is_live | replicas | is_decommissioning | is_draining
+---+---------+----------+--------------------+-------------+
  4 |  true   |       18 |        true        |    false
  5 |  true   |       16 |        true        |    false
(2 rows)

Once the nodes have been fully decommissioned, you'll see a confirmation:

 id | is_live | replicas | is_decommissioning | is_draining
+---+---------+----------+--------------------+-------------+
  4 |  true   |        0 |        true        |    false
  5 |  true   |        0 |        true        |    false
(2 rows)

No more data reported on target nodes. Please verify cluster health before removing the nodes.

Note that is_decommissioning will remain true after all replicas have been transferred from each node.

Step 4. Check the nodes and cluster after the decommissioning process

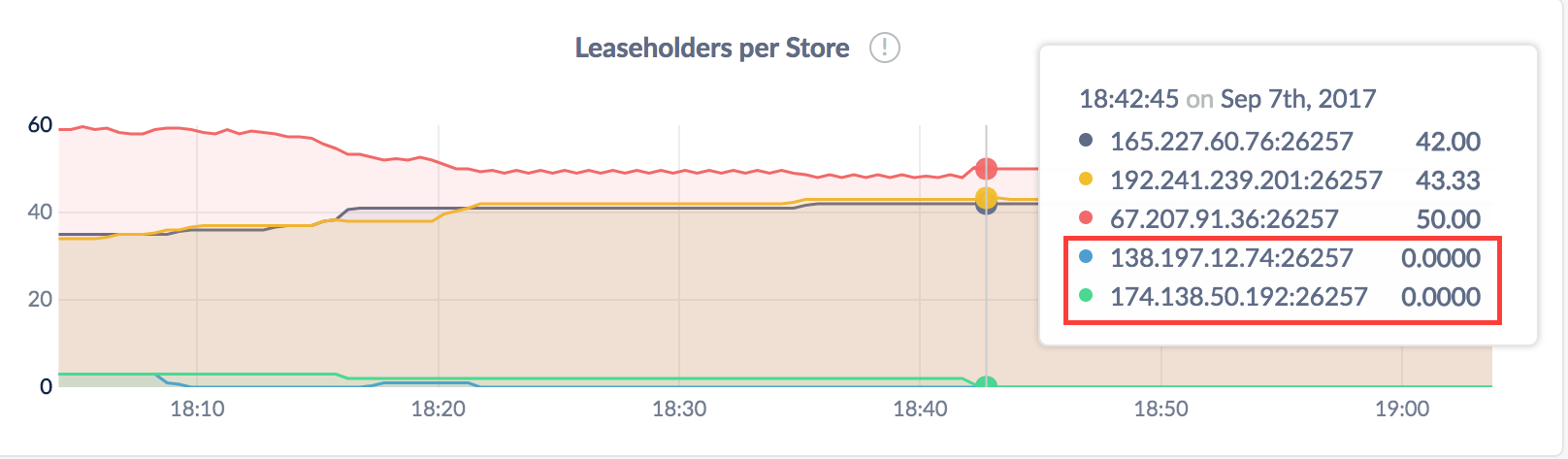

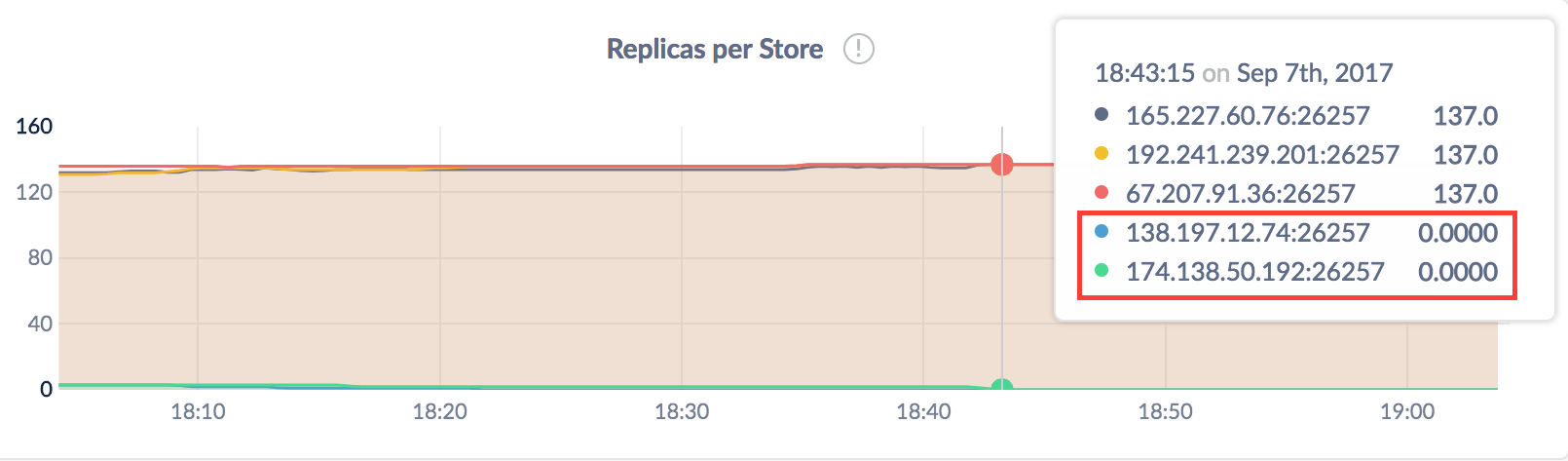

In the Admin UI Replication dashboard, again hover over the Replicas per Store and Leaseholders per Store graphs. For the decommissioning nodes, the counts should be 0:

Decommission multiple nodes
Decommission multiple nodes

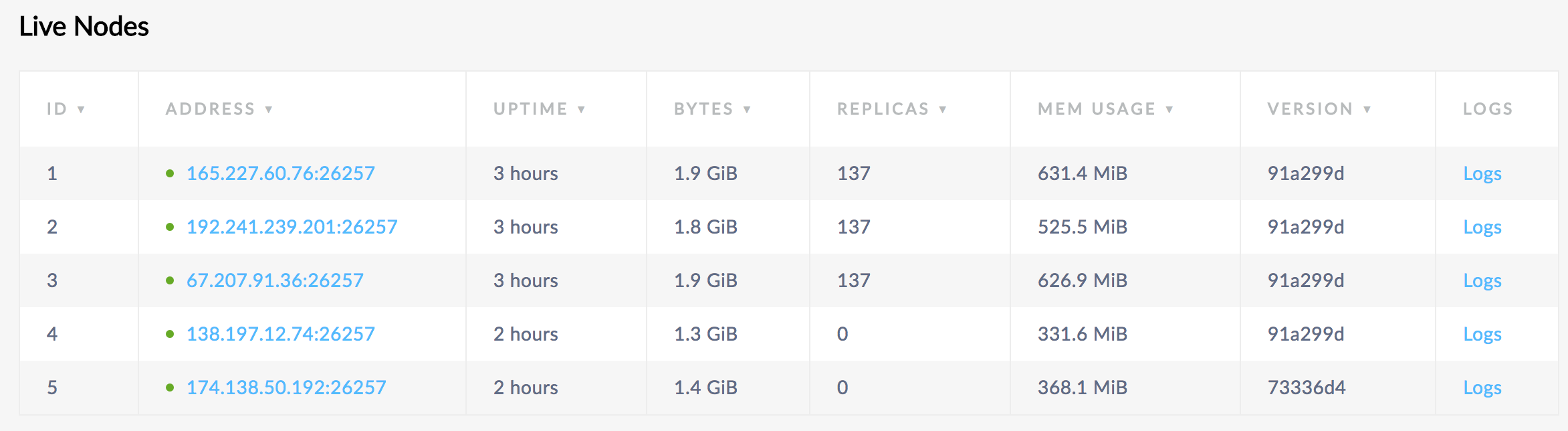

Then click View nodes list in the Summary area and make sure all nodes are healthy (green) and the decommissioning nodes have 0 replicas:

Decommission multiple nodes
Tip:

The nodes are counted as "Suspect" nodes in the Admin UI Cluster Overview panel until they are shut down.

Step 5. Stop the decommissioning nodes

For each node, execute the cockroach quit command:

copy

icon/buttons/copy

$ cockroach quit --certs-dir=certs --host=<address of decommissioned node>

copy

icon/buttons/copy

$ cockroach quit --insecure --host=<address of decommissioned node>

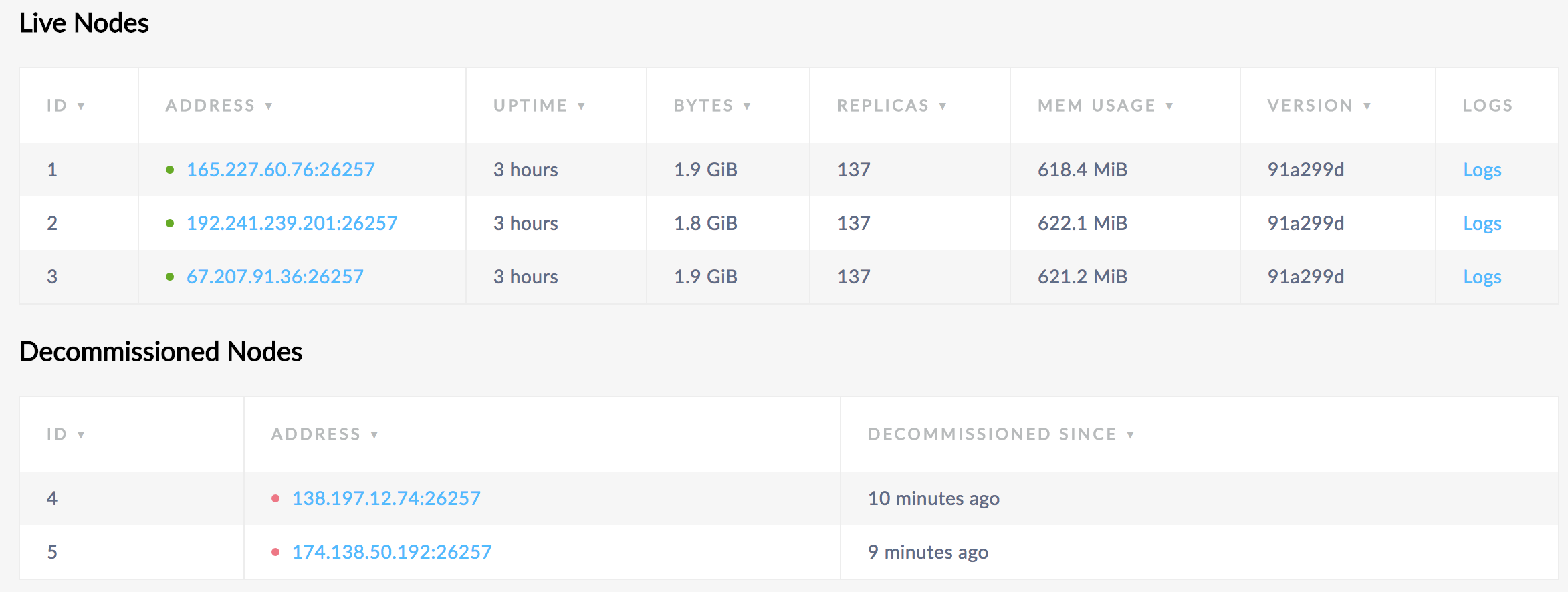

After the duration configured via server.time_until_store_dead, you'll see the nodes move to the Decommissioned Nodes list.

Decommission multiple nodes

At this point, the nodes are decommissioned and will no longer appear in timeseries graphs unless you are viewing a time range during which the nodes were live. However, they will never disappear from the Decommissioned Nodes list.

Note:

If you want to utilize a decommissioned node again, first recommission the node to have the cluster rebalance data to the node. Then restart the node so that it accepts new SQL connections.

Recommission nodes

If you accidentally started decommissioning a node, or have a node with a hung decommissioning process, you can recommission the node. This cancels the process of transferring replicas on the node to other nodes.

Note:

Recommissioning is intended to cancel an active decommissioning process. If all ranges have been removed from a node, start a new node instead of reusing the node.

Step 1. Cancel the decommissioning process

Press ctrl-c in each terminal with an ongoing decommissioning process that you want to cancel.

Step 2. Recommission the decommissioning nodes

Execute the cockroach node recommission command with the IDs of the nodes to recommission:

copy

icon/buttons/copy

$ cockroach node recommission 4 --certs-dir=certs --host=<address of any live node>

copy

icon/buttons/copy

$ cockroach node recommission 4 --insecure --host=<address of any live node>

The value of is_decommissioning will change back to false:

 id | is_live | replicas | is_decommissioning | is_draining
+---+---------+----------+--------------------+-------------+
  4 |  false  |        0 |       false        |    false
(1 row)

On the Node List, you should soon see the recommissioned nodes listed as LIVE. After a few minutes, you should see replicas rebalanced to the nodes.

Check the status of decommissioning nodes

To check the progress of decommissioning nodes, run the cockroach node status command with the --decommission flag:


copy

icon/buttons/copy

$ cockroach node status --decommission --certs-dir=certs --host=<address of any live node>

copy

icon/buttons/copy

$ cockroach node status --decommission --insecure --host=<address of any live node>

 id |        address         |  build  |            started_at            |            updated_at            | is_available | is_live | gossiped_replicas | is_decommissioning | is_draining
+---+------------------------+---------+----------------------------------+----------------------------------+--------------+---------+-------------------+--------------------+-------------+
  1 | 165.227.60.76:26257    | 91a299d | 2018-10-01 16:53:10.946245+00:00 | 2018-10-02 14:04:39.280249+00:00 |         true |  true   |                26 |       false        |    false
  2 | 192.241.239.201:26257  | 91a299d | 2018-10-01 16:53:24.22346+00:00  | 2018-10-02 14:04:39.415235+00:00 |         true |  true   |                26 |       false        |    false
  3 | 67.207.91.36:26257     | 91a299d | 2018-10-01 17:34:21.041926+00:00 | 2018-10-02 14:04:39.233882+00:00 |         true |  true   |                25 |       false        |    false
  4 | 138.197.12.74:26257    | 91a299d | 2018-10-01 17:09:11.734093+00:00 | 2018-10-02 14:04:37.558204+00:00 |         true |  true   |                25 |       false        |    false
  5 | 174.138.50.192:26257   | 91a299d | 2018-10-01 17:14:01.480725+00:00 | 2018-10-02 14:04:39.293121+00:00 |         true |  true   |                 0 |        true        |    false
(5 rows)
  • is_decommissioning == true implies that replicas are being or have been transferred to other nodes. The node is either undergoing or has completed the decommissioning process.
  • is_draining == true implies that the node is no longer accepting SQL connections. The node is either in the process of shutting down or has already done so.
