This page shows you the easiest way to test an insecure, multi-node CockroachDB cluster, using CockroachDB's AWS CloudFormation template to simplify setup and Kubernetes to automate deployment, maintenance, and load balancing of client workloads.

Before you begin

Before getting started, it's important to review some limitations and requirements.

Limitations

Warning:
The CockroachDB AWS CloudFormation template is designed for testing, not for production use.
  • You can scale the cluster to a maximum of 15 nodes.

  • While the AWS region for your deployment is configurable, the cluster runs in a single AWS availability zone within that region. It will easily survive and recover from node failures as long as you deploy at least 3 nodes, but it will not survive an availability zone outage.

    • For production resiliency, the recommendation would be to span 3 or more availability zones in a single region or 3 or more regions.
  • The cluster is completely insecure, which comes with risks:

    • There is no network encryption or authentication, and thus no confidentiality.
    • The cluster is open to any client by default, although you have the option to restrict client access to a specific range of IP addresses.
    • Any user, even root, can log in without providing a password.
    • Any user, connecting as root, can read or write any data in your cluster.

Requirements

  • You must have an AWS account.
  • You must have SSH access in the AWS region where the cluster is deployed.

Step 1. Start CockroachDB

  1. Launch the CockroachDB CloudFormation template.

  2. In the CloudFormation UI, review and customize the settings for the cluster. Most of the defaults are sufficient for testing scenarios. However, it's important to select your SSH Key so you'll be able to connect to the Kubernetes master node later, and to set CockroachDB Version to the v2.0 option.

    You may also want to:

    • Change the AWS region where the cluster will run. The default region is US West. Note that some instance types may not be available in some regions.
    • Add an IP Address Whitelist to restrict user access to the CockroachDB Admin UI and SQL client access to the cluster. By default, all locations have access.
    • Increase the initial Cluster Size. The default is 3 nodes.
  3. In the Load Generators section, select the type of Workload you would like to run against the cluster.

  4. When you're ready to start the cluster, click Create.

    The launch process generally takes 10 to 15 minutes. Once you see the CREATE_COMPLETE status in the CloudFormation UI, the cluster is ready for testing.

    Note:
    If the launch process times out or fails, you could be running into an AWS service limit. You can view any errors in the event history.

Step 2. Test the cluster

  1. Install CockroachDB on your local machine, if you haven't already.

  2. In the Outputs section of the CloudFormation UI, note the Connection String.

  3. In a terminal, start the SQL shell built into the cockroach binary, using the Connection String as the --url flag:

    copy
    icon/buttons/copy
    $ cockroach sql \
    --insecure \
    --url="postgresql://root@Cockroach-ApiLoadB-LVZZ3VVHMIDA-1266691548.us-west-2.elb.amazonaws.com:26257?sslmode=disable"

  4. Run some basic CockroachDB SQL statements:

    copy
    icon/buttons/copy
    > CREATE DATABASE bank;

    copy
    icon/buttons/copy
    > CREATE TABLE bank.accounts (id INT PRIMARY KEY, balance DECIMAL);

    copy
    icon/buttons/copy
    > INSERT INTO bank.accounts VALUES (1, 1000.50);

    copy
    icon/buttons/copy
    > SELECT * FROM bank.accounts;

    +----+---------+
    | id | balance |
    +----+---------+
    |  1 |  1000.5 |
    +----+---------+
    (1 row)

Tip:
With the cockroach binary on your local machine, other client cockroach commands can be run in the same way.

Step 3. Monitor the cluster

You can use the cluster's Admin UI to monitor the workload and overall cluster behavior.

  1. In the Outputs section of the CloudFormation UI, click the Web UI link. Then click Metrics on the left-hand navigation bar.

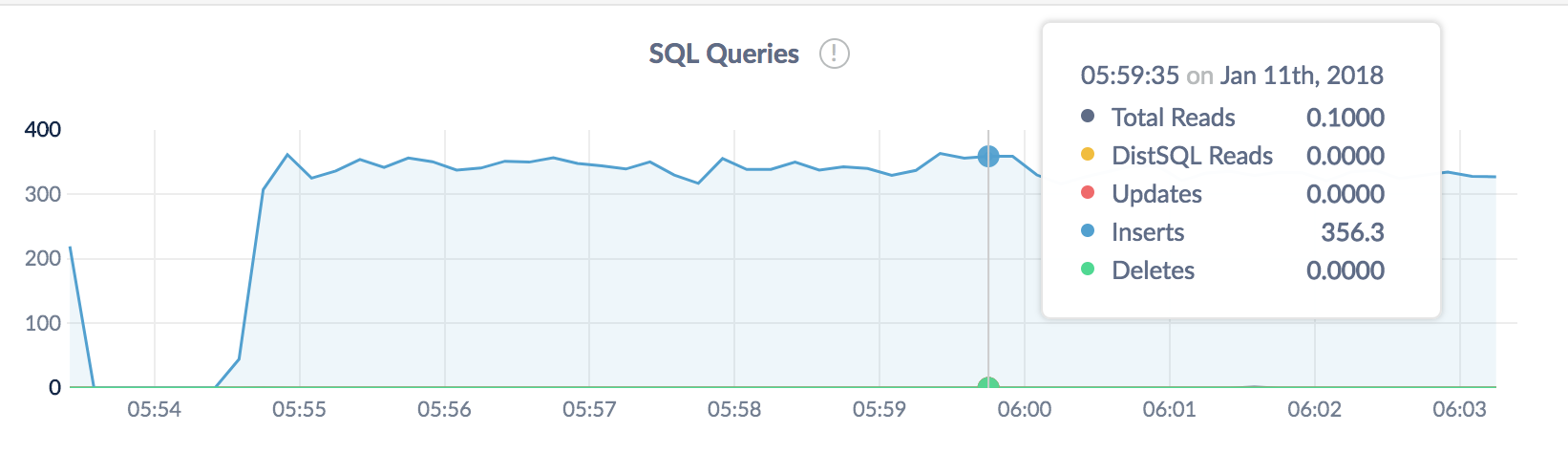

  2. On the Overview dashboard, hover over the SQL Queries graph to see the proportion of reads and writes coming from the load generator.

    CockroachDB Admin UI

  3. Scroll down and hover over the Replicas per Node graph to see how CockroachDB automatically replicates your data behind-the-scenes.

    CockroachDB Admin UI

  4. Explore other areas of the Admin UI.

  5. Learn more about production monitoring and alerting.

Step 4. Simulate node failure

Kubernetes ensures that the cluster always has the number of nodes you specified during initial configuration (3 by default). When a node fails, Kubernetes automatically creates another node with the same network identity and persistent storage.

To see this in action:

  1. In the Outputs section of the CloudFormation UI, note the SSHProxyCommand.

  2. In a new terminal, run the SSHProxyCommand to SSH into the Kubernetes master node. Be sure to update the SSH_KEY environment variable definition to point to the location of your .pem file.

  3. List the Kubernetes pods that map to CockroachDB nodes:

    copy
    icon/buttons/copy
    $ kubectl get pods

    NAME            READY     STATUS    RESTARTS   AGE
    cockroachdb-0   1/1       Running   0          1h
    cockroachdb-1   1/1       Running   0          1h
    cockroachdb-2   1/1       Running   0          1h

  4. Kill one of CockroachDB nodes:

    copy
    icon/buttons/copy
    $ kubectl delete pod cockroachdb-2

    pod "cockroachdb-2" deleted

  5. In the Admin UI, the Cluster Overview panel may show one node as Suspect. As Kubernetes auto-restarts the node, watch how the node once again becomes healthy.

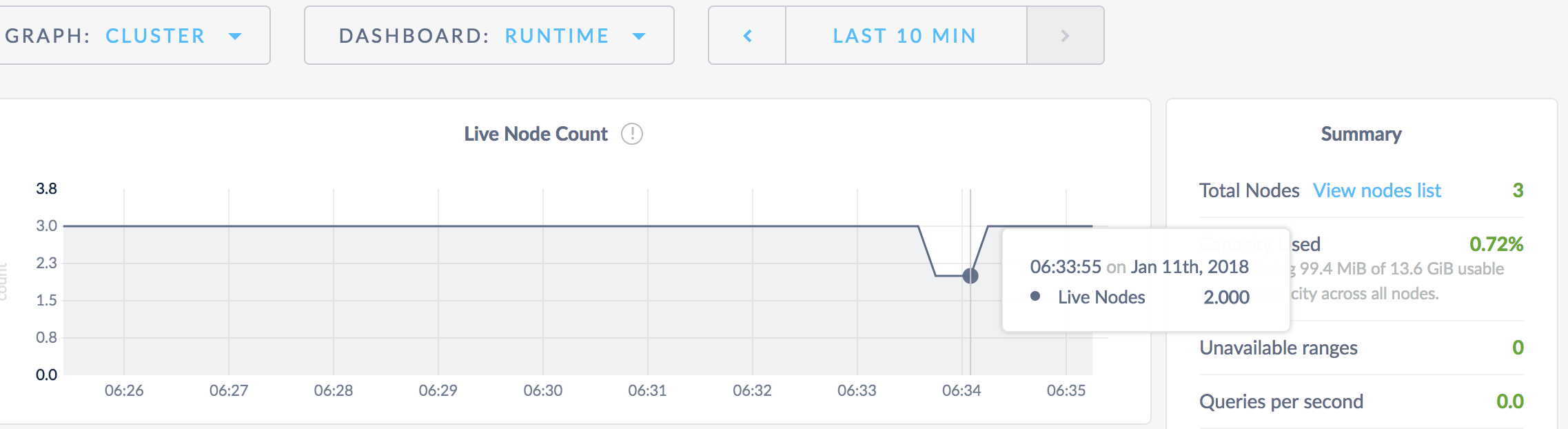

    You can also select the Runtime dashboard and see the restarting of the node in the Live Node Count graph.

    CockroachDB Admin UI

Step 6. Stop the cluster

In the CloudFormation UI, select Other Actions > Delete Stack. This is essential for deleting all AWS resources tied to your cluster. If you do not delete these resources, AWS will continue to charge you for them.
