Follower Reads Topology

On this page Carat arrow pointing down
As of November 18, 2022, CockroachDB v21.1 is no longer supported. For more details, refer to the Release Support Policy.

In a multi-region deployment, Follower Reads are a good choice for tables with the following requirements:

  • Read latency must be low, but write latency can be higher.
  • Reads can be historical (4.8 seconds or more in the past).
  • Rows in the table, and all latency-sensitive queries, cannot be tied to specific geographies (e.g., a reference table).
  • Table data must remain available during a region failure.

If reads from a table must be exactly up-to-date, use Global Tables or Regional Tables instead. Up-to-date reads are required by tables referenced by foreign keys, for example.



  • Multi-region topology patterns are almost always table-specific. If you haven't already, review the full range of patterns to ensure you choose the right one for each of your tables.
  • Review how data is replicated and distributed across a cluster, and how this affects performance. It is especially important to understand the concept of the "leaseholder". For a summary, see Reads and Writes in CockroachDB. For a deeper dive, see the CockroachDB Architecture documentation.
  • Review the concept of locality, which makes CockroachDB aware of the location of nodes and able to intelligently place and balance data based on how you define replication controls.
  • Review the recommendations and requirements in our Production Checklist.
  • This topology doesn't account for hardware specifications, so be sure to follow our hardware recommendations and perform a POC to size hardware for your use case.
  • Adopt relevant SQL Best Practices to ensure optimal performance.

Cluster setup

Each multi-region pattern assumes the following setup:

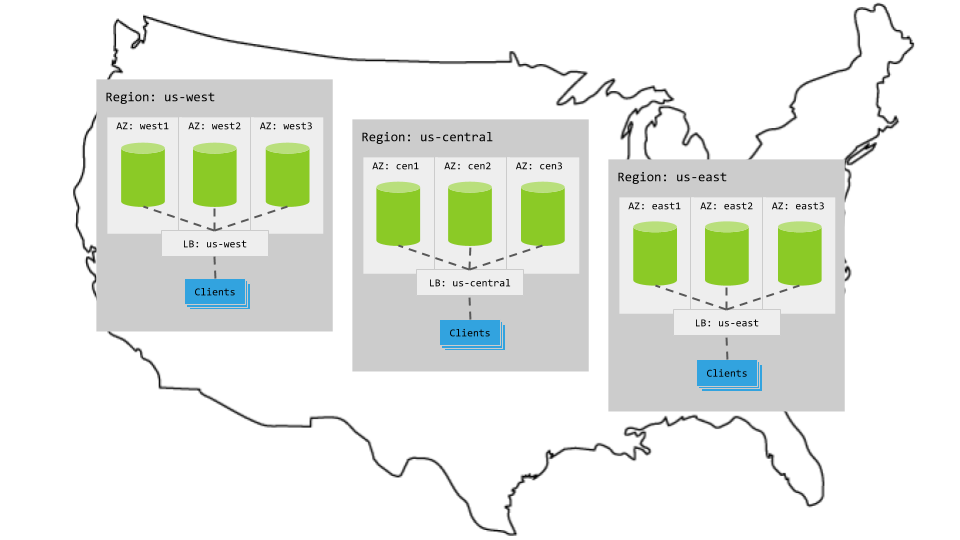

Multi-region hardware setup


  • 3 regions
  • Per region, 3+ AZs with 3+ VMs evenly distributed across them
  • Region-specific app instances and load balancers
    • Each load balancer redirects to CockroachDB nodes in its region.
    • When CockroachDB nodes are unavailable in a region, the load balancer redirects to nodes in other regions.


Each node is started with the --locality flag specifying its region and AZ combination. For example, the following command starts a node in the west1 AZ of the us-west region:

$ cockroach start \
--locality=region=us-west,zone=west1 \
--certs-dir=certs \
--advertise-addr=<node1 internal address> \
--join=<node1 internal address>:26257,<node2 internal address>:26257,<node3 internal address>:26257 \
--cache=.25 \
--max-sql-memory=.25 \



Follower reads requires an Enterprise license.


You configure your application to use follower reads by adding an AS OF SYSTEM TIME clause when reading from the table. This tells CockroachDB to read slightly historical data from the closest replica so as to avoid being routed to the leaseholder, which may be in an entirely different region. Writes, however, will still leave the region to get consensus for the table.


Follower reads topology

Assuming you have a cluster deployed across three regions and a table like the following:

> CREATE TABLE postal_codes (
    code STRING

Insert some data:

> INSERT INTO postal_codes (ID, code) VALUES (1, '10001'), (2, '10002'), (3, '10003'), (4,'60601'), (5,'60602'), (6,'60603'), (7,'90001'), (8,'90002'), (9,'90003');
  1. If you do not already have one, request a trial Enterprise license.

  2. Configure your app to use AS OF SYSTEM TIME follower_read_timestamp() whenever reading from the table:


    The follower_read_timestamp() function returns the TIMESTAMP statement_timestamp() - 4.8s.

    > SELECT code FROM postal_codes
        AS OF SYSTEM TIME follower_read_timestamp()
                WHERE id = 5;

    Alternately, instead of modifying individual read queries on the table, you can set the AS OF SYSTEM TIME value for all operations in a read-only transaction:

    > BEGIN;
    SET TRANSACTION AS OF SYSTEM TIME follower_read_timestamp();
      SELECT code FROM postal_codes
        WHERE id = 5;
      SELECT code FROM postal_codes
        WHERE id = 6;

Using the SET TRANSACTION statement as shown in the example above will make it easier to use the follower reads feature from drivers and ORMs.




Reads retrieve historical data from the closest replica and, therefore, never leave the region. This makes read latency very low but slightly stale.

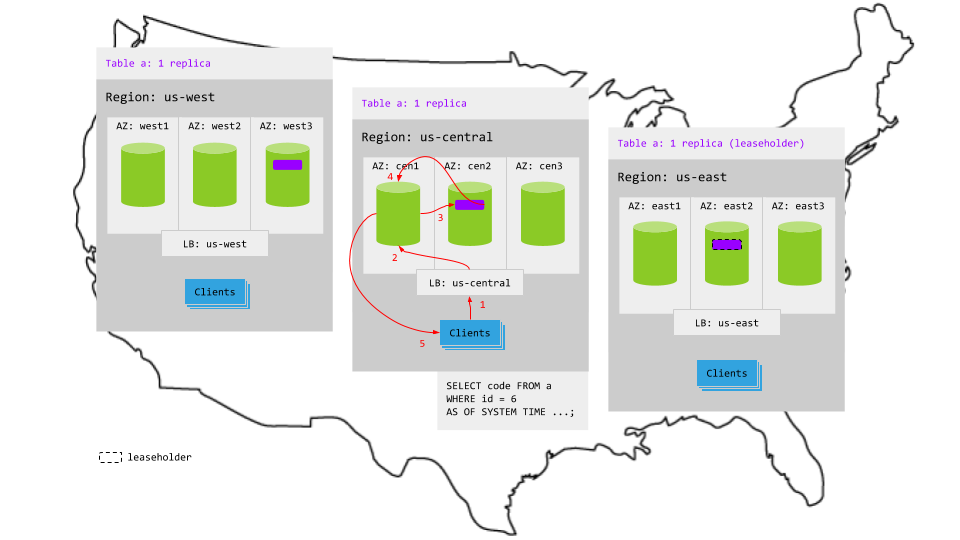

For example, in the animation below:

  1. The read request in us-central reaches the regional load balancer.
  2. The load balancer routes the request to a gateway node.
  3. The gateway node routes the request to the closest replica for the table. In this case, the replica is not the leaseholder.
  4. The replica retrieves the results as of 4.8 seconds in the past and returns to the gateway node.
  5. The gateway node returns the results to the client.

Follower reads topology


The replicas for the table are spread across all 3 regions, so writes involve multiple network hops across regions to achieve consensus. This increases write latency significantly.

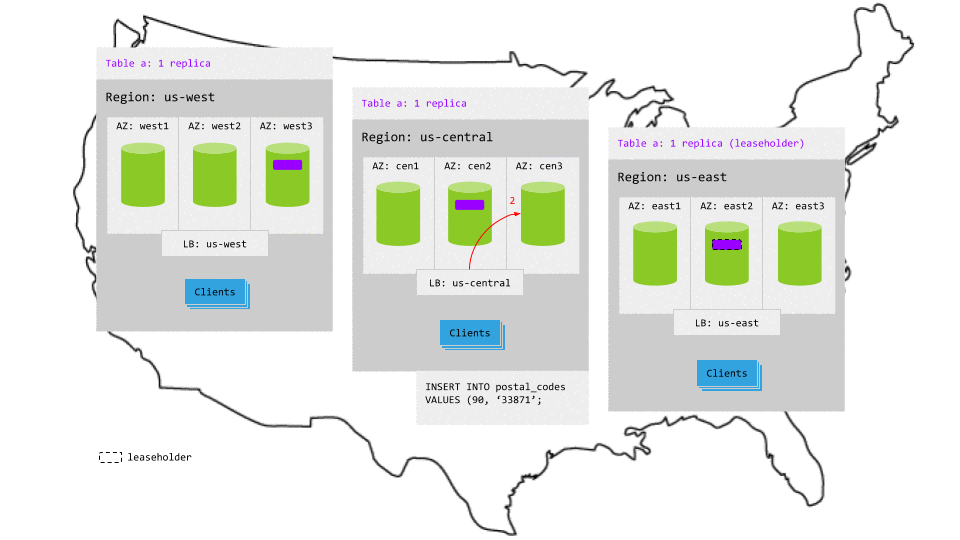

For example, in the animation below:

  1. The write request in us-central reaches the regional load balancer.
  2. The load balancer routes the request to a gateway node.
  3. The gateway node routes the request to the leaseholder replica for the table in us-east.
  4. Once the leaseholder has appended the write to its Raft log, it notifies its follower replicas.
  5. As soon as one follower has appended the write to its Raft log (and thus a majority of replicas agree based on identical Raft logs), it notifies the leaseholder and the write is committed on the agreeing replicas.
  6. The leaseholder then returns acknowledgement of the commit to the gateway node.
  7. The gateway node returns the acknowledgement to the client.

Follower reads topology

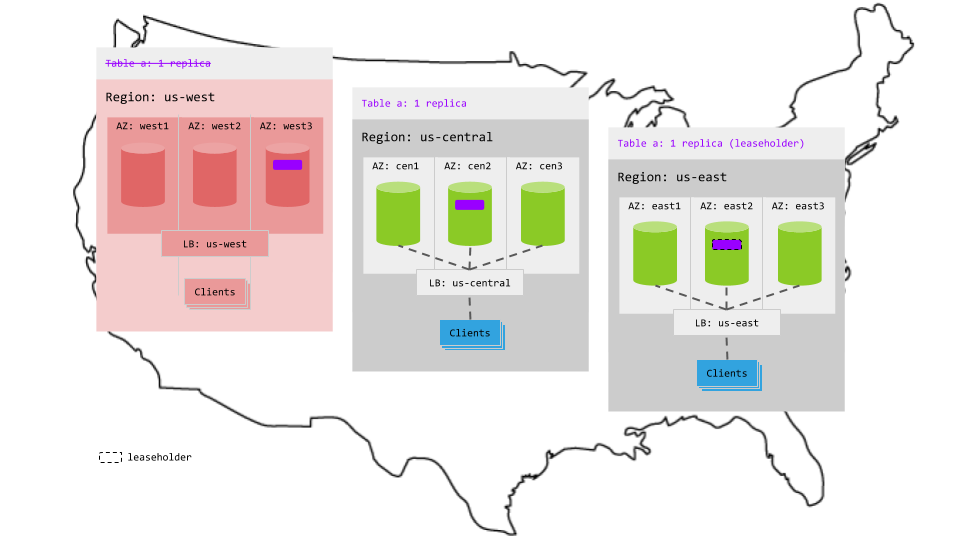

Because this pattern balances the replicas for the table across regions, one entire region can fail without interrupting access to the table:

Follower reads topology
