ST_CoveredBy

Warning:
Cockroach Labs will stop providing Assistance Support for this version on May 10, 2022. Prior to that date, upgrade to a more recent version to continue receiving support. For more details, see the Release Support Policy.

Given two shapes A and B, the predicate function ST_CoveredBy(A, B) returns true if no point in A lies outside of shape B. Otherwise, it returns false.

In other words, shape B must completely cover every point in A.

ST_CoveredBy works on the following data types:

Note:

ST_CoveredBy will attempt to use any available spatial index to speed up its operation. Use the prefixed variant _ST_CoveredBy if you do not want any spatial indexes to be used.

Note:

This function is the inverse of ST_Covers.

Examples

Note:

The screenshots in these examples were generated using geojson.io, but they are designed to showcase the shapes, not the map. Representing GEOMETRY data in GeoJSON can lead to unexpected results if using geometries with SRIDs other than 4326 (as shown below).

True

In this example, ST_CoveredBy returns true because:

  • No Point in the smaller Polygon A lies outside of the larger Polygon B.
icon/buttons/copy
SELECT ST_CoveredBy(st_geomfromtext('SRID=4326;POLYGON((-87.623177 41.881832, -90.199402 38.627003, -82.446732 38.413651, -87.623177 41.881832))'), st_geomfromtext('SRID=4326;POLYGON((-87.906471 43.038902, -95.992775 36.153980, -75.704722 36.076944, -87.906471 43.038902))'));
  st_coveredby
----------------
      true
(1 row)

ST_CoveredBy - true

False

In this example, ST_CoveredBy returns false because:

  • Many Points in the smaller Polygon A lie outside of the larger Polygon B.
icon/buttons/copy
SELECT ST_CoveredBy(st_geomfromtext('SRID=4326;POLYGON((-87.906471 43.038902, -95.992775 36.153980, -75.704722 36.076944, -87.906471 43.038902))'), st_geomfromtext('SRID=4326;POLYGON((-84.191605 39.758949, -75.165222 39.952583, -78.878738 42.880230, -84.191605 39.758949))'));
  st_coveredby
----------------
     false
(1 row)

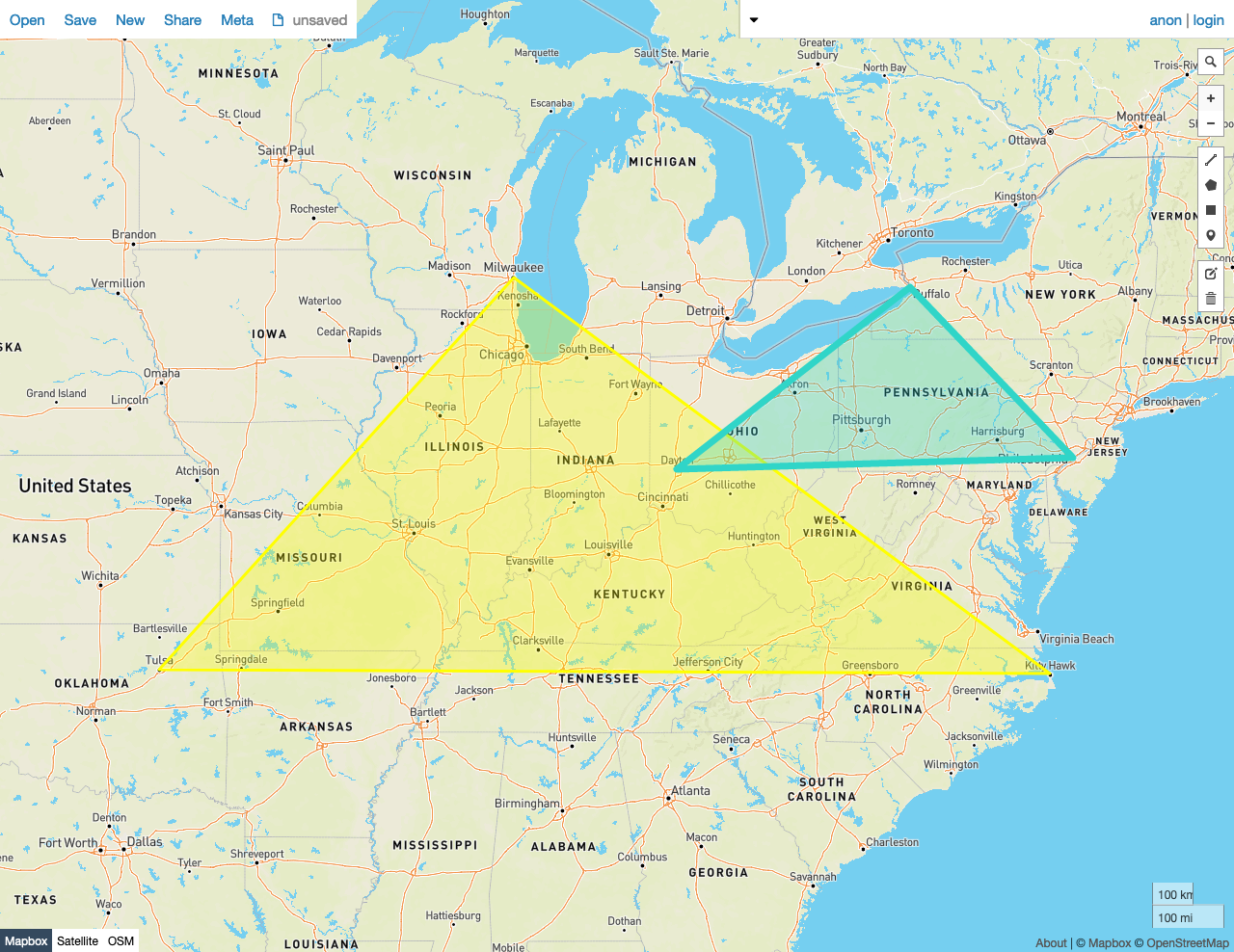

ST_CoveredBy - false
