CockroachDB supports parallel execution of independent
DELETE statements within a single transaction. Executing statements in parallel helps reduce aggregate latency and improve performance.
Built-in performance optimizations such as transaction pipelining provide the same performance benefits as parallel statement execution with better SQL semantics, and without limitations such as the error message mismatch. Parallel statement execution may increase performance in a few very subtle cases, but it is not recommended for most users. If you believe you need to use this feature, please contact someone at CockroachDB first.
Why use parallel statement execution?
SQL engines traditionally execute the SQL statements in a transaction sequentially. The server executes each statement to completion and sends the return value of each statement to the client. Only after the client receives the return value of a statement, it sends the next SQL statement to be executed.
In the case of a traditional single-node SQL database, statements are executed on the single machine, and so the execution does not result in any communication latency. However, in the case of a distributed and replicated database like CockroachDB, execution of statements can span multiple nodes. The coordination between nodes results in communication latency. Executing SQL statements sequentially results in higher cumulative latency.
With parallel statement execution, multiple SQL statements within a transaction are executed at the same time, thereby reducing the aggregate latency.
There is a tradeoff, however. Parallel statement execution breaks SQL semantics by continuing ahead with an attempt to execute a batch of SQL statements even after one of the statements in the transaction has failed.
How parallel statement execution works
Let's understand how sequential and parallel execution works in the following scenario:
- Suppose we want to update a user's last name, favorite movie, and favorite song on a social networking application.
- The database has three tables that need to be updated:
Then the traditional transaction to update the user's information is as follows:
> BEGIN; > UPDATE users SET last_name = 'Smith' WHERE id = 1; > UPDATE favorite_movies SET movies = 'The Matrix' WHERE user_id = 1; > UPDATE favorite_songs SET songs = 'All this time' WHERE user_id = 1; > COMMIT;

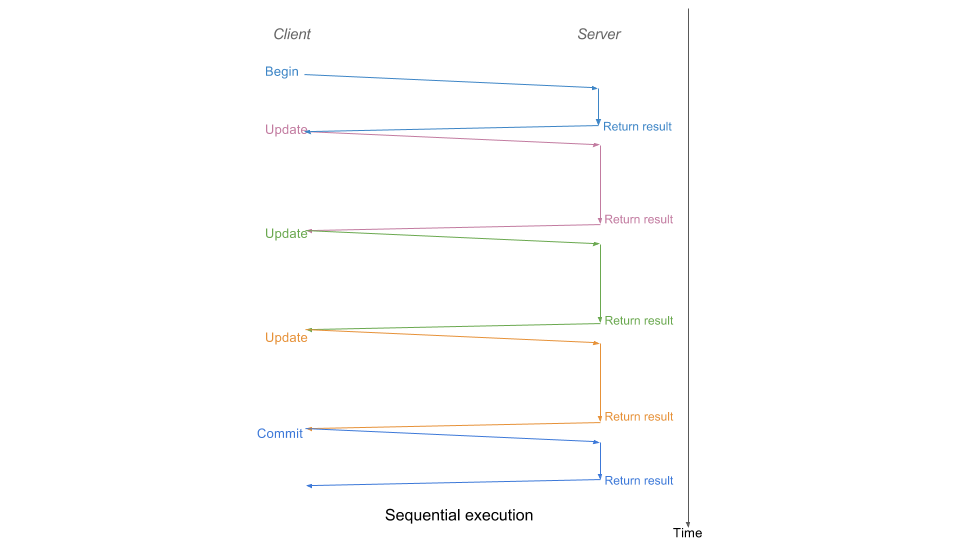

While executing the SQL statements in the transaction sequentially, the server sends a return value after executing a statement. The client can send the next statement to be executed only after it receives the return value of the previous statement. This is often described as a "conversational API," as demonstrated by the following conceptual diagram:
The SQL statements in our sample scenario can be executed in parallel since they are independent of each other. To execute statements in parallel, the client should be able to send the next statement to be executed without waiting for the return value of the earlier statement. In CockroachDB, on appending the
RETURNING NOTHING clause with SQL statements, the server sends an acknowledgment immediately, instead of waiting to complete the statement execution and sending the return value to the client. The client sends the next statement to be executed on receiving the acknowledgment. This allows CockroachDB to execute the statements in parallel. The statements are executed in parallel until CockroachDB encounters a barrier statement. A barrier statement is any statement without the
RETURNING NOTHING clause. The server executes a barrier statement sequentially.
In our sample scenario, the transaction would be as follows:
> BEGIN; > UPDATE users SET last_name = 'Smith' WHERE id = 1 RETURNING NOTHING; > UPDATE favorite_movies SET movies = 'The Matrix' WHERE user_id = 1 RETURNING NOTHING; > UPDATE favorite_songs SET songs = 'All this time' WHERE user_id = 1 RETURNING NOTHING; > COMMIT;
In this case, because the
UPDATE statements within the transaction are independent of each other, they can be executed in parallel without affecting the results. The
COMMIT statement is the barrier statement and is executed sequentially. A barrier statement is executed only after all the parallel statements preceding it have finished executing.

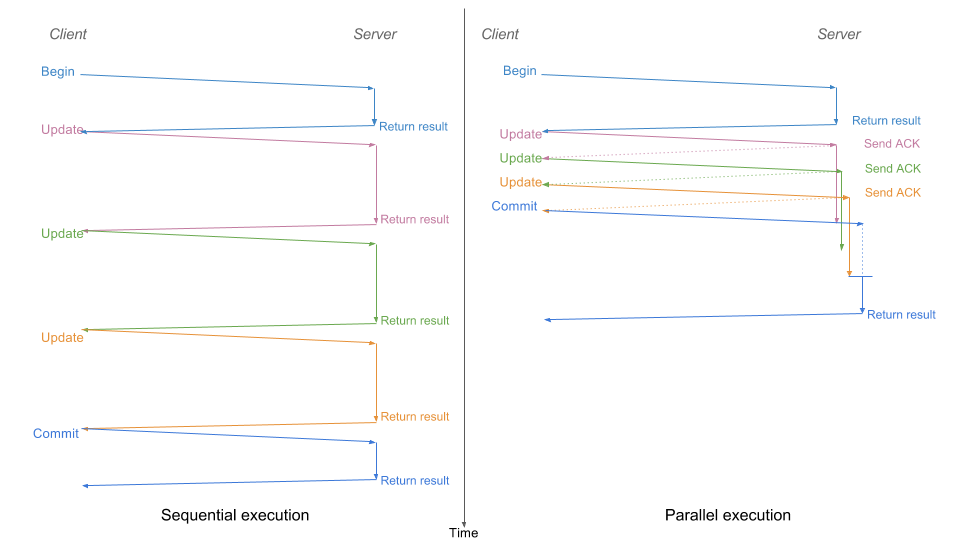

The following conceptual diagram shows how the transaction is executed sequentially and in parallel. The diagram also shows how executing statements in parallel reduces the aggregate latency.
Perceived delay in execution of barrier statements
As stated earlier, the server executes a barrier statement only after all the preceding parallel statements have finished executing. So it may seem as if the barrier statement is taking longer to execute, but it is waiting on the parallel statements. Even then, the total time required for parallel execution of statements followed by the sequential execution of the barrier statement should be less than the time required for the sequential execution of all statements.
Referring to the previous diagram, the server executes all
UPDATE statements to completion before executing
COMMIT. Hence it might seem as if
COMMIT is taking longer to execute, but it is, in fact, waiting on the
UPDATE statements to finish executing.
Error message mismatch

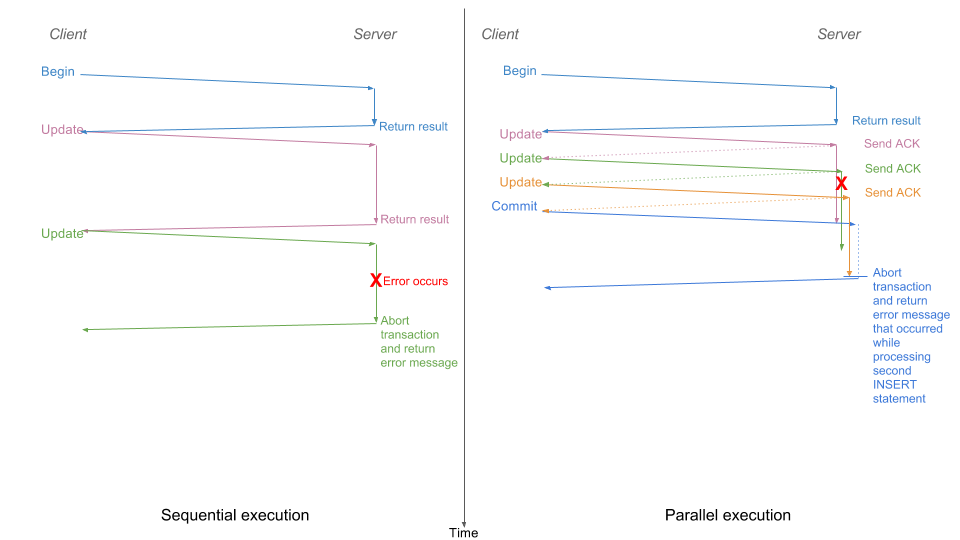

With sequential execution, as soon as an error happens, the transaction is aborted and an error message is sent to the client. However, with parallel execution, the message is sent not when the error is encountered but after the next barrier statement. This can result in the client receiving an error message that doesn't match the statement being executed. The following diagram illustrates this concept:
RETURNING NOTHING clause appended to dependent statements
If two consecutive statements are not independent, and yet a
RETURNING NOTHING clause is added to the statements, CockroachDB detects the dependence and executes the statements sequentially. This means that you can use the
RETURNING NOTHING clause with SQL statements without worrying about their dependence.
Revising our sample scenario, suppose we want to create a new user on the social networking app. We need to create entries for the last name of the user, their favorite movie, and favorite song. We need to insert entries into three tables:
favorite_songs. The transaction would be as follows:
> BEGIN; > INSERT INTO users VALUES last_name = 'Pavlo' WHERE id = 2 RETURNING NOTHING; > INSERT INTO favorite_movies VALUES movies = 'Godfather' WHERE user_id = 2 RETURNING NOTHING; > INSERT INTO facvorite_songs VALUES songs = 'Remember' WHERE user_id = 2 RETURNING NOTHING; > COMMIT;
In this case, the second and third
INSERT statements are dependent on the first
INSERT statement because the movies and songs tables both have a foreign key constraint on the users table. So even though we append the
RETURNING NOTHING clause to the first statement, CockroachDB executes the first statement sequentially. After the first statement is executed to completion, the second and third

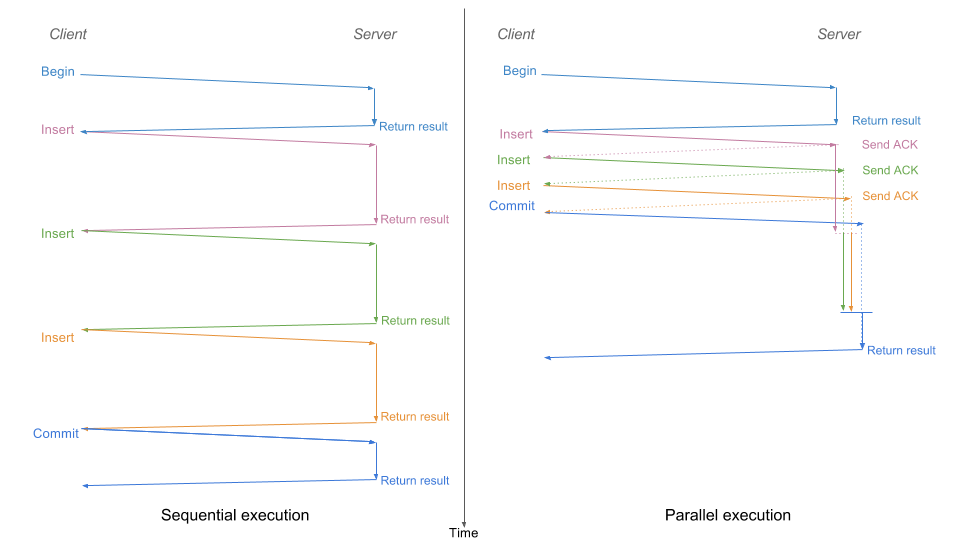

INSERT statements are executed in parallel. The following conceptual diagram shows how the transaction is executed in sequential and parallel modes:
When to use parallel statement execution
SQL statements within a single transaction can be executed in parallel if the statements are independent. CockroachDB considers SQL statements within a single transaction to be independent if their execution can be safely reordered without affecting their results.
For example, the following statements are considered independent since reordering the statements does not affect the results:
> INSERT INTO a VALUES (100); > INSERT INTO b VALUES (100);
> INSERT INTO a VALUES (100); > INSERT INTO a VALUES (200);
The following pairs of statements are dependent since reordering them will affect their results:
> UPDATE a SET b = 2 WHERE y = 1; > UPDATE a SET b = 3 WHERE y = 1;
> UPDATE a SET y = true WHERE y = false; > UPDATE a SET y = false WHERE y = true;
