Given two shapes A and B, predicate function
ST_Covers(A, B) returns
true if no point in B lies outside of shape A. Otherwise, it returns
In other words, shape A must completely cover every point in B.
This behavior is similar to
ST_Contains, except that the criteria for
ST_Contains are more exacting, and therefore some pairs of shapes will be accepted by this function that would be rejected by
ST_Covers works on the following data types:
ST_Covers will attempt to use any available spatial index to speed up its operation. Use the prefixed variant
_ST_Covers if you do not want any spatial indexes to be used.
This function is the inverse of
The screenshots in these examples were generated using geojson.io, but they are designed to showcase the shapes, not the map. Representing
GEOMETRY data in GeoJSON can lead to unexpected results if using geometries with SRIDs other than 4326 (as shown below).

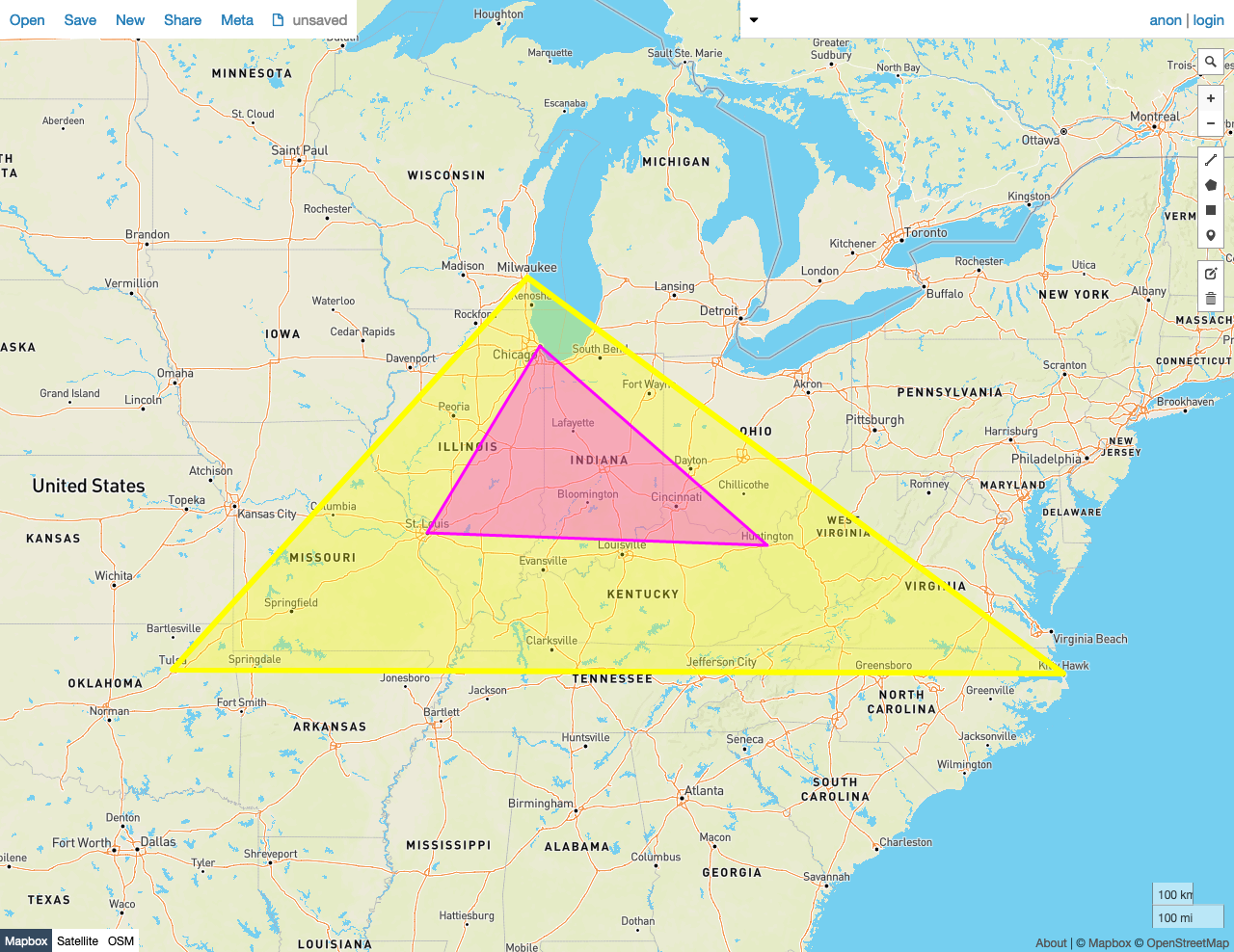

In this example,
- No Point in the smaller Polygon B lies outside of the larger Polygon A.
SELECT ST_Covers(st_geomfromtext('SRID=4326;POLYGON((-87.906471 43.038902, -95.992775 36.153980, -75.704722 36.076944, -87.906471 43.038902))'), st_geomfromtext('SRID=4326;POLYGON((-87.623177 41.881832, -90.199402 38.627003, -82.446732 38.413651, -87.623177 41.881832))'));
st_covers --------------- true (1 row)

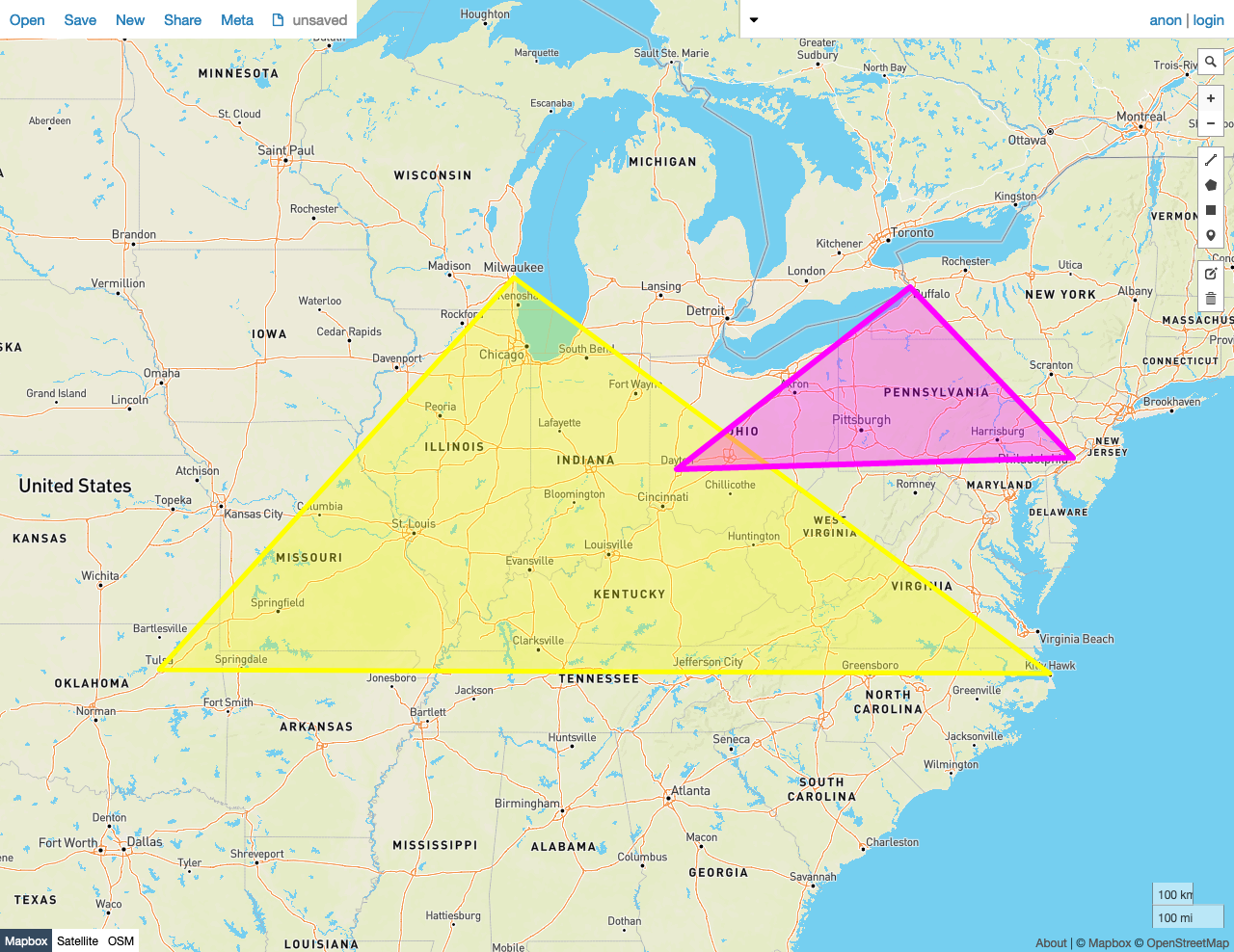

In this example,
- Many Points in the smaller Polygon B lie outside of the larger Polygon A.
SELECT ST_Covers(st_geomfromtext('SRID=4326;POLYGON((-87.906471 43.038902, -95.992775 36.153980, -75.704722 36.076944, -87.906471 43.038902))'), st_geomfromtext('SRID=4326;POLYGON((-84.191605 39.758949, -75.165222 39.952583, -78.878738 42.880230, -84.191605 39.758949))'));
st_covers --------------- false (1 row)
