Once you've installed CockroachDB, it's simple to run a secure multi-node cluster locally, using TLS certificates to encrypt network communication.

Note:

Running multiple nodes on a single host is useful for testing CockroachDB, but it's not suitable for production. To run a physically distributed cluster, see Manual Deployment or Orchestrated Deployment, and review the Production Checklist.

Before you begin

Step 1. Generate certificates

You can use either cockroach cert commands or openssl commands to generate security certificates. This section features the cockroach cert commands.

  1. Create two directories:

    copy
    icon/buttons/copy
    $ mkdir certs my-safe-directory

    Directory Description
    certs You'll generate your CA certificate and all node and client certificates and keys in this directory.
    my-safe-directory You'll generate your CA key in this directory and then reference the key when generating node and client certificates.
  2. Create the CA (Certificate Authority) certificate and key pair:

    copy
    icon/buttons/copy
    $ cockroach cert create-ca \
    --certs-dir=certs \
    --ca-key=my-safe-directory/ca.key

  3. Create the certificate and key pair for the your nodes:

    copy
    icon/buttons/copy
    $ cockroach cert create-node \
    localhost \
    $(hostname) \
    --certs-dir=certs \
    --ca-key=my-safe-directory/ca.key


    Because you're running a local cluster and all nodes use the same hostname (localhost), you only need a single node certificate. Note that this is different than running a production cluster, where you would need to generate a certificate and key for each node, issued to all common names and IP addresses you might use to refer to the node as well as to any load balancer instances.

  4. Create a client certificate and key pair for the root user:

    copy
    icon/buttons/copy
    $ cockroach cert create-client \
    root \
    --certs-dir=certs \
    --ca-key=my-safe-directory/ca.key


Step 2. Start the cluster

  1. Use the cockroach start command to start the first node:

    copy
    icon/buttons/copy
    $ cockroach start \
    --certs-dir=certs \
    --store=node1 \
    --listen-addr=localhost:26257 \
    --http-addr=localhost:8080 \
    --join=localhost:26257,localhost:26258,localhost:26259 \
    --background


    You'll see a message like the following:

    *
    * INFO: initial startup completed.
    * Node will now attempt to join a running cluster, or wait for `cockroach init`.
    * Client connections will be accepted after this completes successfully.
    * Check the log file(s) for progress.
    *

  2. Take a moment to understand the flags you used:

    • The --certs-dir directory points to the directory holding certificates and keys.
    • Since this is a purely local cluster, --listen-addr=localhost:26257 and --http-addr=localhost:8080 tell the node to listen only on localhost, with port 26257 used for internal and client traffic and port 8080 used for HTTP requests from the Admin UI.
    • The --store flag indicates the location where the node's data and logs are stored.
    • The --join flag specifies the addresses and ports of the nodes that will initially comprise your cluster. You'll use this exact --join flag when starting other nodes as well.
    • The --background flag starts the cockroach process in the background so you can continue using the same terminal for other operations.
  3. Start two more nodes:

    copy
    icon/buttons/copy
    $ cockroach start \
    --certs-dir=certs \
    --store=node2 \
    --listen-addr=localhost:26258 \
    --http-addr=localhost:8081 \
    --join=localhost:26257,localhost:26258,localhost:26259 \
    --background

    copy
    icon/buttons/copy
    $ cockroach start \
    --certs-dir=certs \
    --store=node3 \
    --listen-addr=localhost:26259 \
    --http-addr=localhost:8082 \
    --join=localhost:26257,localhost:26258,localhost:26259 \
    --background


    These commands are the same as before but with unique --store, --listen-addr, and --http-addr flags.

  4. Use the cockroach init command to perform a one-time initialization of the cluster, sending the request to any node:

    copy
    icon/buttons/copy
    $ cockroach init --certs-dir=certs --host=localhost:26257


    You'll see the following message:

    Cluster successfully initialized


    At this point, each node also prints helpful startup details to its log. For example, the following command retrieves node 1's startup details:

    copy
    icon/buttons/copy
    $ grep 'node starting' node1/logs/cockroach.log -A 11


    The output will look something like this:

    CockroachDB node starting at 2019-11-25 11:01:26.34274101 +0000 UTC
    build:               CCL v19.2.1 @ 2019/11/25 11:00:26 (go1.12.12) (go1.12.6)
    webui:               https://localhost:8080
    sql:                 postgresql://root@localhost:26257?sslcert=certs%2Fclient.root.crt&sslkey=certs%2Fclient.root.key&sslmode=verify-full&sslrootcert=certs%2Fca.crt
    RPC client flags:    cockroach <client cmd> --host=localhost:26257 --certs-dir=certs
    logs:                /Users/<username>/node1/logs
    temp dir:            /Users/<username>/node1/cockroach-temp966687937
    external I/O path:   /Users/<username>/node1/extern
    store[0]:            path=/Users/<username>/node1
    status:              initialized new cluster
    clusterID:           b2537de3-166f-42c4-aae1-742e094b8349
    nodeID:              1


Step 3. Use the built-in SQL client

Now that your cluster is live, you can use any node as a SQL gateway. To test this out, let's use CockroachDB's built-in SQL client.

  1. Run the cockroach sql command against node 1:

    copy
    icon/buttons/copy
    $ cockroach sql --certs-dir=certs --host=localhost:26257

  2. Run some basic CockroachDB SQL statements:

    copy
    icon/buttons/copy
    > CREATE DATABASE bank;

    copy
    icon/buttons/copy
    > CREATE TABLE bank.accounts (id INT PRIMARY KEY, balance DECIMAL);

    copy
    icon/buttons/copy
    > INSERT INTO bank.accounts VALUES (1, 1000.50);

    copy
    icon/buttons/copy
    > SELECT * FROM bank.accounts;

      id | balance
    +----+---------+
       1 | 1000.50
    (1 row)

  3. Now exit the SQL shell on node 1 and open a new shell on node 2:

    copy
    icon/buttons/copy
    > \q

    copy
    icon/buttons/copy
    $ cockroach sql --certs-dir=certs --host=localhost:26258

    Note:

    In a real deployment, all nodes would likely use the default port 26257, and so you wouldn't need to set the port portion of --host.

  4. Run the same SELECT query as before:

    copy
    icon/buttons/copy
    > SELECT * FROM bank.accounts;

      id | balance
    +----+---------+
       1 | 1000.50
    (1 row)


    As you can see, node 1 and node 2 behaved identically as SQL gateways.

  5. Now create a user with a password, which you will need in a later to access the Admin UI:

    copy
    icon/buttons/copy
    > CREATE USER max WITH PASSWORD 'roach';

  6. Exit the SQL shell on node 2:

    copy
    icon/buttons/copy
    > \q


Step 4. Run a sample workload

CockroachDB also comes with a number of built-in workloads for simulating client traffic. Let's the workload based on CockroachDB's sample vehicle-sharing application, MovR.

  1. Load the initial dataset:

    copy
    icon/buttons/copy
    $ cockroach workload init movr \
    'postgresql://root@localhost:26257?sslcert=certs%2Fclient.root.crt&sslkey=certs%2Fclient.root.key&sslmode=verify-full&sslrootcert=certs%2Fca.crt'

    I190926 16:50:35.663708 1 workload/workloadsql/dataload.go:135  imported users (0s, 50 rows)
    I190926 16:50:35.682583 1 workload/workloadsql/dataload.go:135  imported vehicles (0s, 15 rows)
    I190926 16:50:35.769572 1 workload/workloadsql/dataload.go:135  imported rides (0s, 500 rows)
    I190926 16:50:35.836619 1 workload/workloadsql/dataload.go:135  imported vehicle_location_histories (0s, 1000 rows)
    I190926 16:50:35.915498 1 workload/workloadsql/dataload.go:135  imported promo_codes (0s, 1000 rows)

  2. Run the workload for 5 minutes:

    copy
    icon/buttons/copy
    $ cockroach workload run movr \
    --duration=5m \
    'postgresql://root@localhost:26257?sslcert=certs%2Fclient.root.crt&sslkey=certs%2Fclient.root.key&sslmode=verify-full&sslrootcert=certs%2Fca.crt'


Step 5. Access the Admin UI

The CockroachDB Admin UI gives you insight into the overall health of your cluster as well as the performance of the client workload.

  1. Go to http://localhost:8080. Note that your browser will consider the CockroachDB-created certificate invalid; you'll need to click through a warning message to get to the UI.

  2. Log in with the username and password you created earlier (max/roach).

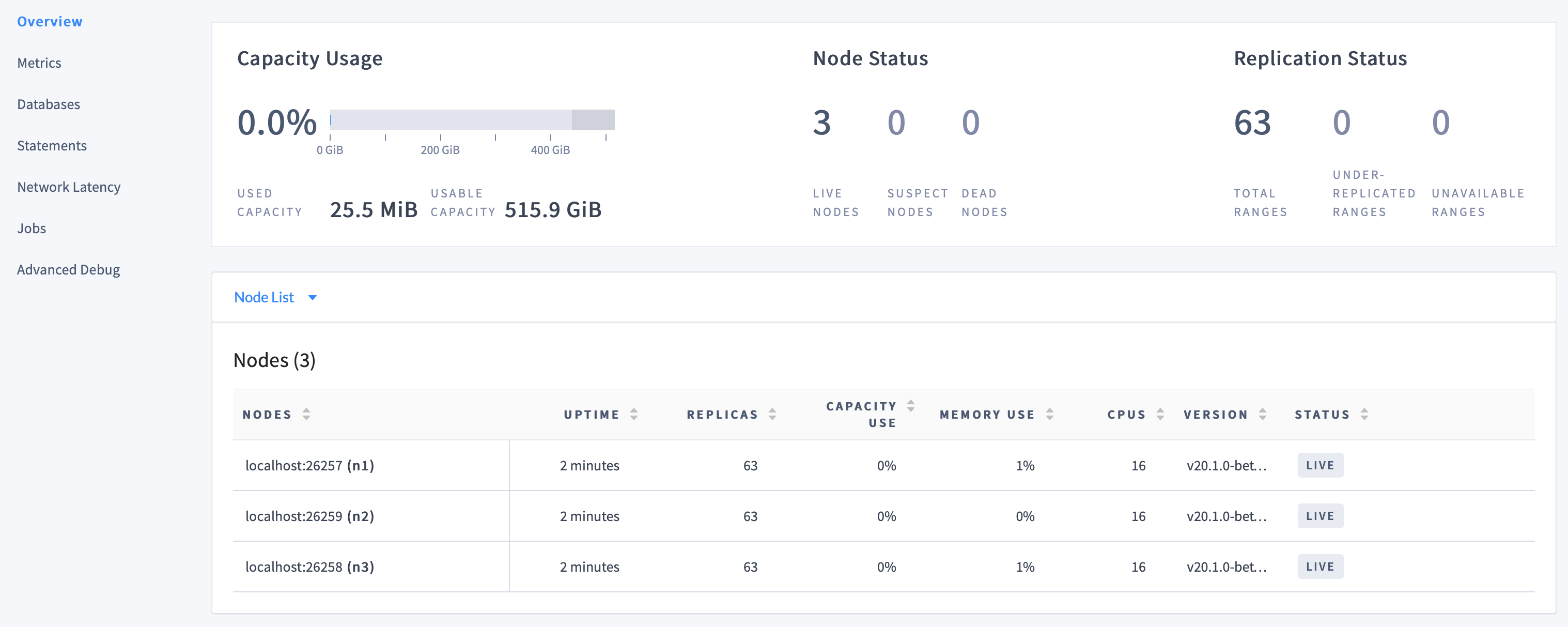

  3. On the Cluster Overview, notice that three nodes are live, with an identical replica count on each node:

    CockroachDB Admin UI

    This demonstrates CockroachDB's automated replication of data via the Raft consensus protocol.

    Note:

    Capacity metrics can be incorrect when running multiple nodes on a single machine. For more details, see this limitation.

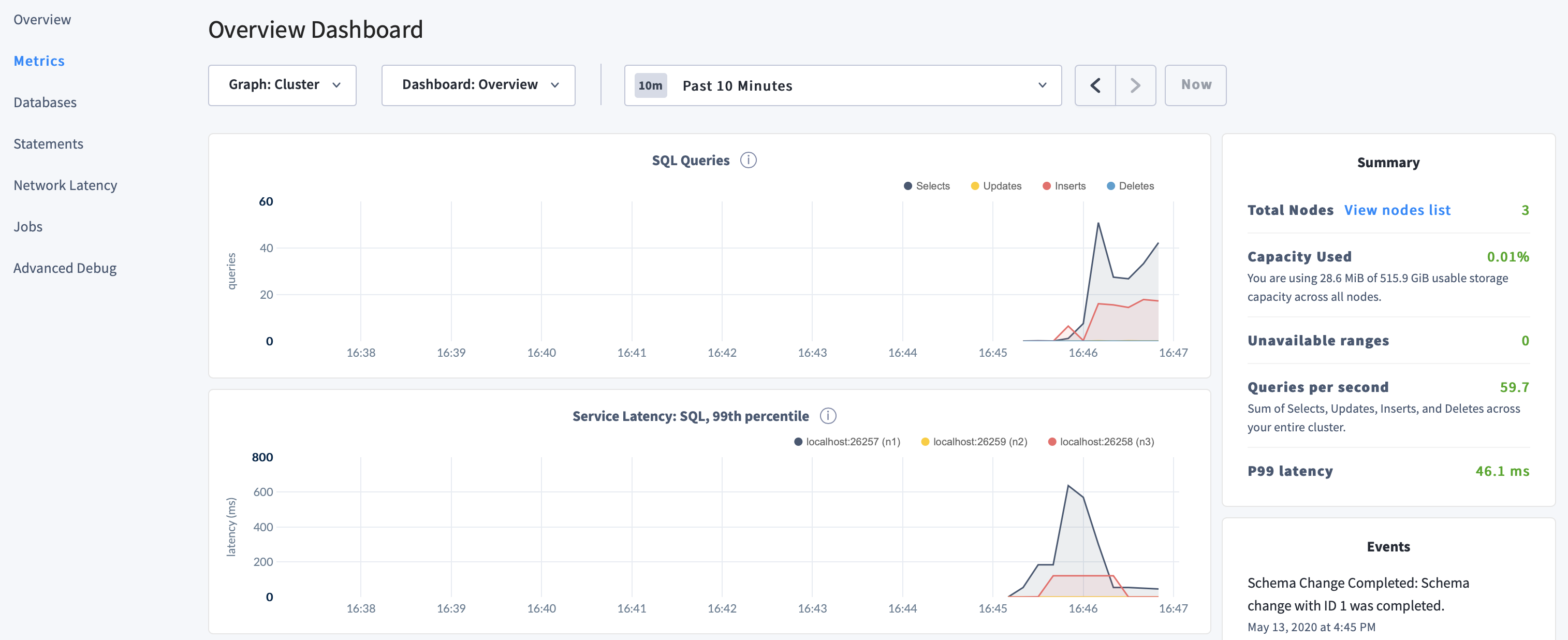

  4. Click Metrics to access a variety of time series dashboards, including graphs of SQL queries and service latency over time:

    CockroachDB Admin UI

  5. Use the Databases, Statements, and Jobs pages to view details about your databases and tables, to assess the performance of specific queries, and to monitor the status of long-running operations like schema changes, respectively.

Step 6. Simulate node failure

  1. In a new terminal, run the cockroach quit command against a node to simulate a node failure:

    copy
    icon/buttons/copy
    $ cockroach quit --certs-dir=certs --host=localhost:26259

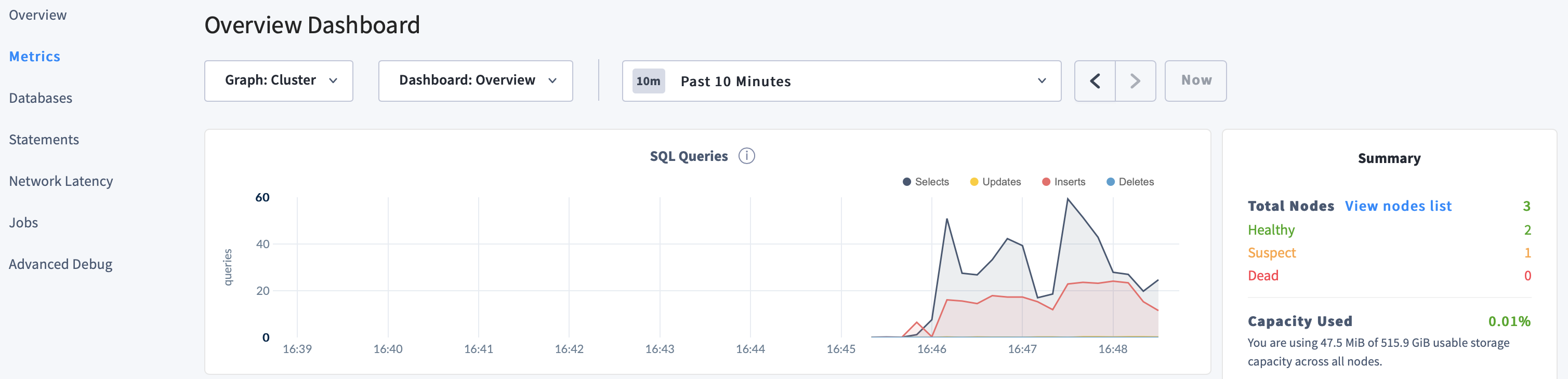

  2. Back in the Admin UI, despite one node being "suspect", notice the continued SQL traffic:

    CockroachDB Admin UI

    This demonstrates CockroachDB's use of the Raft consensus protocol to maintain availability and consistency in the face of failure; as long as a majority of replicas remain online, the cluster and client traffic continue uninterrupted.

  3. Restart node 3:

    copy
    icon/buttons/copy
    $ cockroach start \
    --certs-dir=certs \
    --store=node3 \
    --listen-addr=localhost:26259 \
    --http-addr=localhost:8082 \
    --join=localhost:26257,localhost:26258,localhost:26259 \
    --background


Step 7. Scale the cluster

Adding capacity is as simple as starting more nodes with cockroach start.

  1. Start 2 more nodes:

    copy
    icon/buttons/copy
    $ cockroach start \
    --certs-dir=certs \
    --store=node4 \
    --listen-addr=localhost:26260 \
    --http-addr=localhost:8083 \
    --join=localhost:26257,localhost:26258,localhost:26259 \
    --background

    copy
    icon/buttons/copy
    $ cockroach start \
    --certs-dir=certs \
    --store=node5 \
    --listen-addr=localhost:26261 \
    --http-addr=localhost:8084 \
    --join=localhost:26257,localhost:26258,localhost:26259 \
    --background


    Again, these commands are the same as before but with unique --store, --listen-addr, and --http-addr flags.

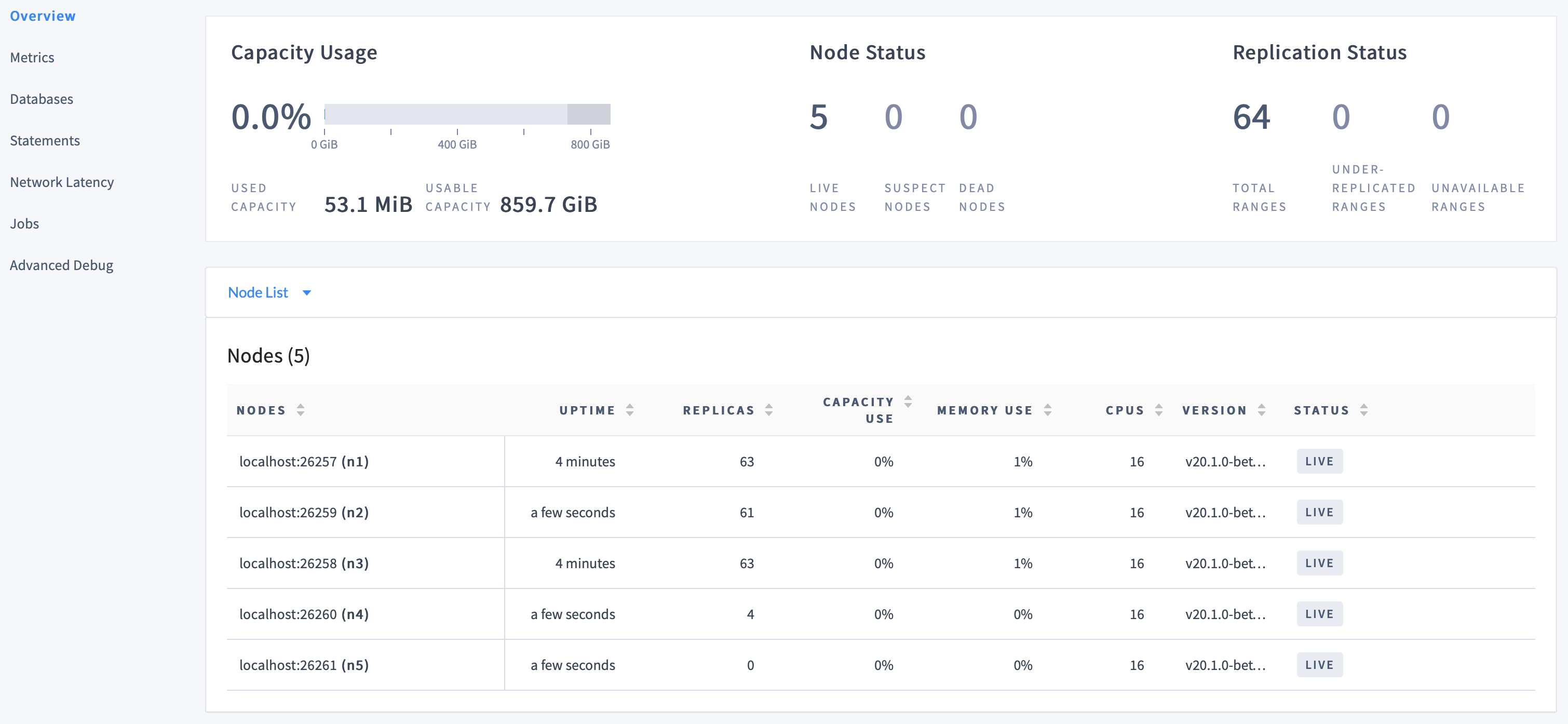

  2. Back on the Cluster Overview in the Admin UI, you'll now see 5 nodes listed:

    CockroachDB Admin UI

    At first, the replica count will be lower for nodes 4 and 5. Very soon, however, you'll see those numbers even out across all nodes, indicating that data is being automatically rebalanced to utilize the additional capacity of the new nodes.

Step 8. Stop the cluster

  1. When you're done with your test cluster, use the cockroach quit command to gracefully shut down each node.

    copy
    icon/buttons/copy
    $ cockroach quit --certs-dir=certs --host=localhost:26257

    copy
    icon/buttons/copy
    $ cockroach quit --certs-dir=certs --host=localhost:26258

    copy
    icon/buttons/copy
    $ cockroach quit --certs-dir=certs --host=localhost:26259

    Note:

    For nodes 4 and 5, the shutdown process will take longer (about a minute each) and will eventually force the nodes to stop. This is because, with only 2 of 5 nodes left, a majority of replicas are not available, and so the cluster is no longer operational.

    copy
    icon/buttons/copy
    $ cockroach quit --certs-dir=certs --host=localhost:26260

    copy
    icon/buttons/copy
    $ cockroach quit --certs-dir=certs --host=localhost:26261

  2. To restart the cluster at a later time, run the same cockroach start commands as earlier from the directory containing the nodes' data stores.

    If you do not plan to restart the cluster, you may want to remove the nodes' data stores and the certificate directories:

    copy
    icon/buttons/copy
    $ rm -rf node1 node2 node3 node4 node5 certs my-safe-directory
