Cloud Storage Authentication

On this page Carat arrow pointing down

Cockroach Labs supports different levels of authentication to cloud storage. When running disaster recovery or change data capture operations to and from a storage bucket, authentication setup can vary depending on the cloud provider. Select the tab appropriate to your cloud storage provider to review the available authentication options for your platform.

Note:

We recommend using IAM roles for users to authenticate to cloud storage resources. For more detail, see the assume role and workload identity sections for Amazon S3 and Google Cloud Storage.

You can use the following authentication options for Amazon S3 storage buckets:

  • Specified: You specify the AWS access key ID and secret access key in the URI when connecting.
  • Implicit: You store the needed AWS credentials as environment variables, and may omit them when connecting. As an alternative, you can use implicit authentication with the IAM role that CockroachDB Cloud automatically creates and manages for each CockroachDB Dedicated cluster to avoid storing any credentials in your cluster.

To have users assume IAM roles to complete operations on an S3 bucket, you can also configure assume role authentication in addition to specified or implicit. If your CockroachDB cluster is deployed on Kubernetes, you can use workload identities with assume role authentication.

Amazon S3 specified

If the AUTH parameter is not provided, AWS connections default to specified and the access keys must be provided in the URI parameters.

Use these parameters to specify your credentials:

  • AWS_ACCESS_KEY_ID
  • AWS_SECRET_ACCESS_KEY

As an example:

icon/buttons/copy
BACKUP DATABASE <database> INTO 's3://{bucket name}/{path in bucket}/?AWS_ACCESS_KEY_ID={access key ID}&AWS_SECRET_ACCESS_KEY={secret access key}';

See Amazon's documentation Managing access keys for IAM users for more details on S3 credentials.

Tip:

Assume role authentication allows you to use temporary short-lived credentials to authenticate to an Amazon S3 buckets. For more detail, see Amazon S3 assume role.

Amazon S3 implicit

Note:

To use implicit authentication on a CockroachDB Cloud cluster, it is necessary to authenticate using assume role authentication. See Amazon S3 assume role for more details.

Use implicit authentication with your own IAM role

For self-hosted deployments, follow these instructions. For CockroachDB Dedicated deployments, you can either follow these instructions or you can use implicit authentication together with the service account that CockroachDB Cloud automatically creates.

To limit the control access to your Amazon S3 buckets, you can create IAM roles for users to assume. IAM roles do not have an association to a particular user. The role contains permissions that define the operations a user (or Principal) can complete. An IAM user can then assume a role to undertake a CockroachDB backup, restore, import, etc. As a result, the IAM user only has access to the assigned role, rather than having unlimited access to an S3 bucket.

Tip:

Role assumption applies the principle of least privilege rather than directly providing privilege to a user. Creating IAM roles to manage access to AWS resources is Amazon's recommended approach compared to giving access directly to IAM users.

If the AUTH parameter is implicit, the access keys can be omitted and the credentials will be loaded from the environment (i.e., the machines running the backup).

icon/buttons/copy
BACKUP DATABASE <database> INTO 's3://{bucket name}/{path}?AUTH=implicit';

You can associate an EC2 instance with an IAM role to provide implicit access to S3 storage within the IAM role's policy. In the following command, the instance example EC2 instance is associated with the example profile instance profile, giving the EC2 instance implicit access to any example profile S3 buckets.

icon/buttons/copy
aws ec2 associate-iam-instance-profile --iam-instance-profile Name={example profile} --region={us-east-2} --instance-id {instance example}

You can grant a user the EXTERNALIOIMPLICITACCESS system-level privilege to interact with external resources that require implicit access.

Note:

If the use of implicit credentials is disabled with the --external-io-disable-implicit-credentials flag, you will receive an error when you access external cloud storage services with AUTH=implicit.

Use implicit authentication with CockroachDB Dedicated

For a CockroachDB Dedicated cluster, you can either use implicit authentication with your own IAM role or you can follow these instructions to use implicit authentication with the IAM role that CockroachDB Cloud automatically creates and manages for each CockroachDB Dedicated cluster. This IAM role is named according to the pattern arn:aws:iam::{AWS_ACCOUNT_ID}:role/crl-dr-store-user-{CLUSTER_ID_SUFFIX}, where {CLUSTER_ID_SUFFIX} is the last 12 digits of the cluster's ID. This IAM role is automatically granted the permission to write to the cluster's storage. One benefit of this approach is that no additional credentials needs to be added to the cluster.

For example, to initiate a manual backup on a CockroachDB Dedicated cluster using implicit auth with the crl-dr-store-user-{CLUSTER_ID_SUFFIX} IAM role:

icon/buttons/copy
BACKUP INTO 's3://{bucket name}/{path}?&AUTH=implicit&ASSUME_ROLE=arn:aws:iam::{AWS_ACCOUNT_ID}:role/crl-dr-store-user-{CLUSTER_ID_SUFFIX}`

Amazon S3 assume role

Note:

CockroachDB supports assume role authentication on clusters running CockroachDB v22.2 and above. On earlier versions, an attempt to authenticate to cloud storage with ASSUME_ROLE will result in failed bulk operations.

For a CockroachDB Dedicated cluster, you can either use implicit authentication with your own service account or you can follow these instructions to use implicit authentication with the service account that CockroachDB Cloud automatically creates and manages for each CockroachDB Dedicated cluster. This service account is named according to the pattern crl-dr-store-user-{CLUSTER_ID_SUFFIX}, where {CLUSTER_ID} is the last 12 digits of the cluster's. This service account is automatically granted the permission to write to the cluster's storage. One benefit of this approach is that no additional credentials needs to be added to the cluster.

For example, to initiate a manual backup on a CockroachDB Dedicated cluster using implicit auth with the crl-dr-store-user-{CLUSTER_ID} service account:

icon/buttons/copy
BACKUP INTO 'gs://{bucket name}/{path}?&AUTH=implicit&ASSUME_ROLE=crl-dr-store-user-{CLUSTER_ID_SUFFIX}'

Replace {CLUSTER_ID_SUFFIX} with the last 12 digits of the cluster's ID.

Use implicit authentication with your own service account

To limit the control access to your Amazon S3 buckets, you can create IAM roles for users to assume. IAM roles do not have an association to a particular user. The role contains permissions that define the operations a user (or Principal) can complete. An IAM user can then assume a role to undertake a CockroachDB backup, restore, import, etc. As a result, the IAM user only has access to the assigned role, rather than having unlimited access to an S3 bucket.

You can use the external_id option with ASSUME_ROLE to specify an external ID for third-party access to your Amazon S3 bucket. The external ID is a unique ID that the third party provides you along with their ARN. For guidance on external_id usage in CockroachDB, refer to the following example.

Tip:

Role assumption applies the principle of least privilege rather than directly providing privilege to a user. Creating IAM roles to manage access to AWS resources is Amazon's recommended approach compared to giving access directly to IAM users.

The following section demonstrates setting up assume role authentication between two users. For examples of assume role authentication for more than two roles, refer to Role chaining for additional detail.

Set up Amazon S3 assume role

For example, to configure a user to assume an IAM role that allows a bulk operation to an Amazon S3 bucket, take the following steps:

  1. Create a role that contains a policy to interact with the S3 buckets depending on the operation your user needs to complete. See the Storage permissions section for details on the minimum permissions each CockroachDB bulk operation requires. You can create an IAM role in Amazon's Management console, under the IAM and then Roles menu. Alternately, you can use the AWS CLI.

  2. If you do not already have the user that needs to assume the role, create the user. Under IAM in the Amazon console, navigate to Users and Add users. You can then add the necessary permissions by clicking on the Permissions tab. Ensure that the IAM user has sts:AssumeRole permissions attached. The following policy will give the user assume role permissions:

    {
    "Version": "2012-10-17",
    "Statement": {
        "Effect": "Allow",
        "Action": "sts:AssumeRole",
        "Resource": "arn:aws:iam::{account ID}:role/{role name}"
        }
    }


    The Resource here is the Amazon Resource Name (ARN) of the role you created in step 1. You can copy this from the role's Summary page.

    The sts:AssumeRole permission allows the user to obtain a temporary set of security credentials that gives them access to an S3 bucket to which they would not have access with their user-based permissions.

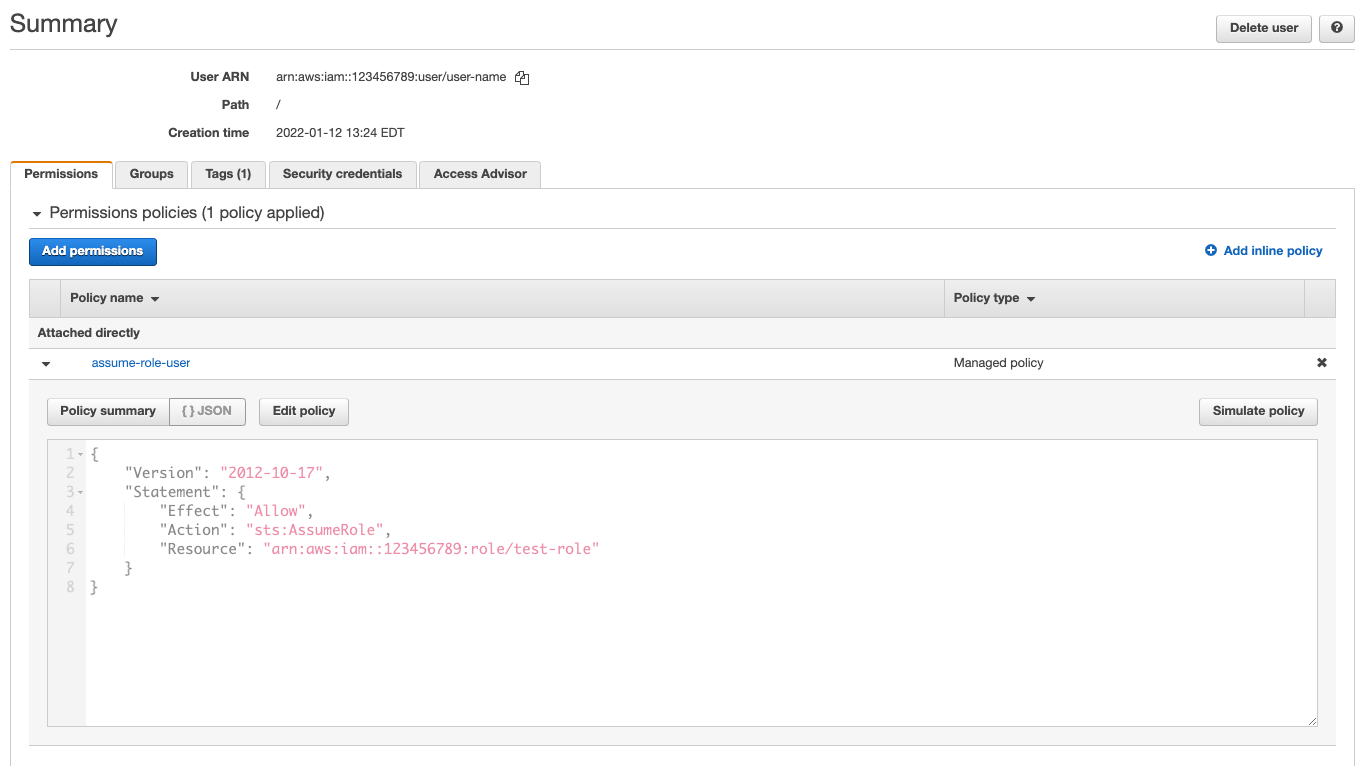

    AWS user summary page showing the JSON policy in place

  3. Return to your IAM role's Summary page, and click on the Trust Relationships tab. Add a trust policy into the role, which will define the users that can assume the role.

    The following trust policy provides the user the privilege to assume the role:

    {
        "Version": "2012-10-17",
        "Statement": [
            {
                "Effect": "Allow",
                "Principal": {
                    "AWS": "arn:aws:iam::123456789123:user/{user}"
                },
                "Action": "sts:AssumeRole"
            }
        ]
    }


    When creating a trust policy consider the following:

    • In the trust policy you need to include the ARN of the user that you want to assume the role under Principal. You can also include the Condition attribute to further control access to the Amazon S3 bucket. For example, this could limit the operation to a specified date range, to users with multi-factor authentication enabled, or to specific IP addresses.

      • The Condition attribute allows you to specify an external ID that the user has provided with their ARN. For example:

        icon/buttons/copy
        "Condition": {"StringEquals": {"sts:ExternalId": "Unique ID Assigned by the user"}}


        For more detail on creating and implementing external IDs in your AWS account, refer to Amazon's documentation How to use an external ID when granting access to your AWS resources to a third party.

    • If you set the Principal ARN to root, this will allow any IAM user in the account with the AssumeRole permission to access the Amazon S3 bucket as per the defined IAM role permissions.

    • When the IAM user takes on the role to perform a bulk operation, they are temporarily granted the permissions contained in the role. That is, not the permissions specified in their user profile.

  4. Run the bulk operation. If using specified authentication, pass in the S3 bucket's URL with the IAM user's AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY. If using implicit authentication, specify AUTH=IMPLICIT instead. For assuming the role, pass the assumed role's ARN, which you can copy from the IAM role's summary page:

    icon/buttons/copy
    BACKUP DATABASE movr INTO 's3://{bucket name}?AWS_ACCESS_KEY_ID={user key}&AWS_SECRET_ACCESS_KEY={user secret key}&ASSUME_ROLE=arn:aws:iam::{account ID}:role/{role name}' AS OF SYSTEM TIME '-10s';


    If your user also has an external ID, you can pass that with ASSUME_ROLE:

    icon/buttons/copy
    BACKUP DATABASE movr INTO 's3://{bucket name}?AWS_ACCESS_KEY_ID={user key}&AWS_SECRET_ACCESS_KEY={user secret key}&ASSUME_ROLE=arn:aws:iam::{account ID}:role/{role name};external_id={Unique ID}' AS OF SYSTEM TIME '-10s';


    CockroachDB also supports authentication for assuming roles when taking encrypted backups. To use with an encrypted backup, pass the ASSUME_ROLE parameter to the KMS URI as well as the bucket's:

    icon/buttons/copy
    BACKUP INTO 's3://{bucket name}?AWS_ACCESS_KEY_ID={user key}&AWS_SECRET_ACCESS_KEY={user secret key}&ASSUME_ROLE={ARN}' WITH kms = 'aws:///{key}?AWS_ACCESS_KEY_ID={user key}&AWS_SECRET_ACCESS_KEY={user secret key}&REGION={region}&ASSUME_ROLE={ARN}';


    For more information on AWS KMS URI formats, refer to Take and Restore Encrypted Backups.

Amazon S3 role chaining

Role chaining allows a user to assume a role through an intermediate role(s) instead of the user directly assuming a role. In this way, the role chain passes the request for access to the final role in the chain. Role chaining could be useful when a third-party organization needs access to your Amazon S3 bucket to complete a bulk operation. Or, your organization could grant roles based on limited-privilege levels.

You can configure role chaining across multiple roles in the same way you configure assume role authentication for one role, except across all roles that will participate in the chain. For example, to configure role A to assume role B, ensure that the ARN of role A is present in role B's trust policy with the sts:AssumeRole action.

The role B's trust policy must contain:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::{account-A-ID}:role/{role A name}"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

Then, to allow role B to assume a third role, role C, role C's trust policy needs to include role B in the same way. For example, to chain three roles so that a user could assume role C, it is necessary to verify the following:

User → Role A → Role B → Role C
Has permission to assume role A. See step 2. Has a trust policy that permits the user to assume role A. See step 3. Has a trust policy that permits role A to assume role B. Has a trust policy that permits role B to assume role C.
Needs permission to assume role B. Needs permission to assume role C.

When passing a chained role into BACKUP, it will follow this pattern:

icon/buttons/copy
BACKUP DATABASE movr INTO "s3://{bucket name}?AWS_ACCESS_KEY_ID={user's key}&AWS_SECRET_ACCESS_KEY={user's secret key}&ASSUME_ROLE={role A ARN},{role B ARN},{role C ARN}" AS OF SYSTEM TIME '-10s';

You can also specify a different external ID for each chained role. For example:

icon/buttons/copy
BACKUP DATABASE movr INTO "s3://{bucket name}?AWS_ACCESS_KEY_ID={user's key}&AWS_SECRET_ACCESS_KEY={user's secret key}&ASSUME_ROLE={role A ARN};external_id={ID A},{role B ARN};external_id={ID B},{role C ARN};external_id={ID C}" AS OF SYSTEM TIME '-10s';

Each chained role is listed separated by a , character. You can copy the ARN of the role from its summary page in the AWS Management console.

Amazon S3 workload identity

With a CockroachDB cluster deployed on Kubernetes, you can allow your pods to authenticate as an IAM role that you have associated to a Kubernetes service account. You can then use assume role authentication to allow that IAM role to assume another role that has permissions to perform bulk operations to an S3 bucket.

This means that a CockroachDB node will only be able to access credentials for the IAM role associated with the Kubernetes service account.

You can use workload identities with assume role authentication to run the following operations:

To use assume role authentication, you will need at least two IAM roles:

  • An identity role: the IAM role associated with your Kubernetes service account.
  • An operation role: the IAM role to be assumed. This contains the permissions required to complete a CockroachDB operation.

For a walkthrough on how to set this up for CockroachDB Self-Hosted and CockroachDB Dedicated clusters, see the following steps.

Step 1. Set up the identity role

The first step to setting up workload identity authentication is different for CockroachDB Self-Hosted and CockroachDB Dedicated clusters. As you work through the step, ensure you use the relevant section for your cluster:

Set up the identity role for CockroachDB Dedicated clusters

Each CockroachDB Dedicated cluster has a pre-configured IAM role for Amazon EKS service accounts that acts as the cluster's identity. In addition, the clusters have a unique built-in, functionality IAM role, which you can configure as a trusted identity within the Trust Policy of your cloud IAM roles. This allows you to have the built-in IAM role assume another role (or roles as part of a chain). This section will refer to the built-in IAM role as the "identity role".

The prefixes for the built-in IAM identity roles are as follows:

IAM role name Operation
crl-dr-store-user Backup, Restore, Import, Export
crl-cdc-sink-user Changefeeds
crl-kms-user Encrypted backups and restores

Construct the ARN for your identity role. You will need this to add into the Trust Policy of an operation role or intermediary role. The IAM role's ARN follows this pattern (in this example the crl-dr-store-user role name is used for a backup):

icon/buttons/copy
arn:aws:iam::{AWS account ID}:role/crl-dr-store-user-{cluster ID suffix}

You can find the AWS account ID and your cluster's ID using the Cloud API:

icon/buttons/copy
curl --request GET --url 'https://cockroachlabs.cloud/api/v1/clusters' --header 'Authorization: Bearer {secret key}'

Combine the last 12 digits of your cluster's id and the full 12-digit account_id in the following fashion to form the ARN:

icon/buttons/copy
arn:aws:iam::{123456789123}:role/crl-dr-store-user-{123456789123}

See Step 2. Trust the identity role to add this ARN to an operation role's Trust Policy.

Set up the identity role for CockroachDB Self-hosted clusters

First, create an IAM role for your Kubernetes service account to assume, and then configure your CockroachDB pods to use the service account. We will refer to this IAM role as an "identity role". You can complete all of these steps with Amazon's guide on IAM roles for service accounts.

Once you have an identity role that your CockroachDB nodes can assume, you can configure the identity role to assume another IAM role that contains the permissions to perform a bulk operation.

Copy the ARN of the identity role. In the Amazon management console, click on IAM, then Roles, and select the name of your identity role. From the Summary page, copy your ARN. You will need this when configuring the Trust Policy for the IAM role to be assumed.

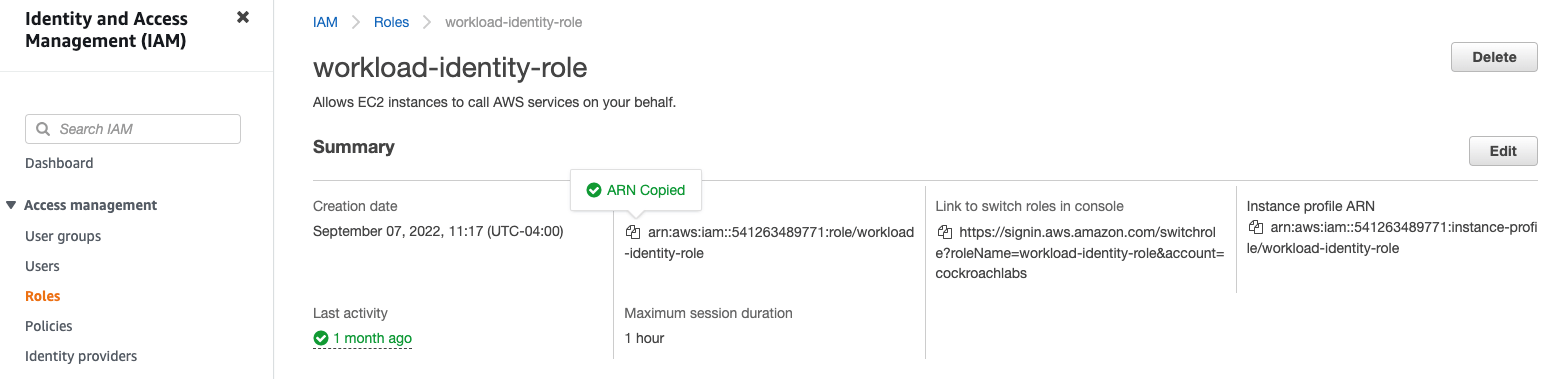

Role summary page showing the ARN copied

See Step 2. Trust the identity role to add this ARN to an operation role's Trust Policy.

Step 2. Trust the identity role

Create or open the operation role that your identity role will assume.

Note:

If you already have the role that contains permissions for the operation, ensure that you add the identity role ARN to the role's Trust Relationships tab on the Summary page.

  1. To create an operation role, click Create Role under the Roles menu. Select Custom trust policy and then add the ARN of your identity role (from Step 1) to the JSON by clicking Principal. This will open a dialog box. Select IAM Roles for Principal Type and paste the ARN. Click Add Principal and then Next.

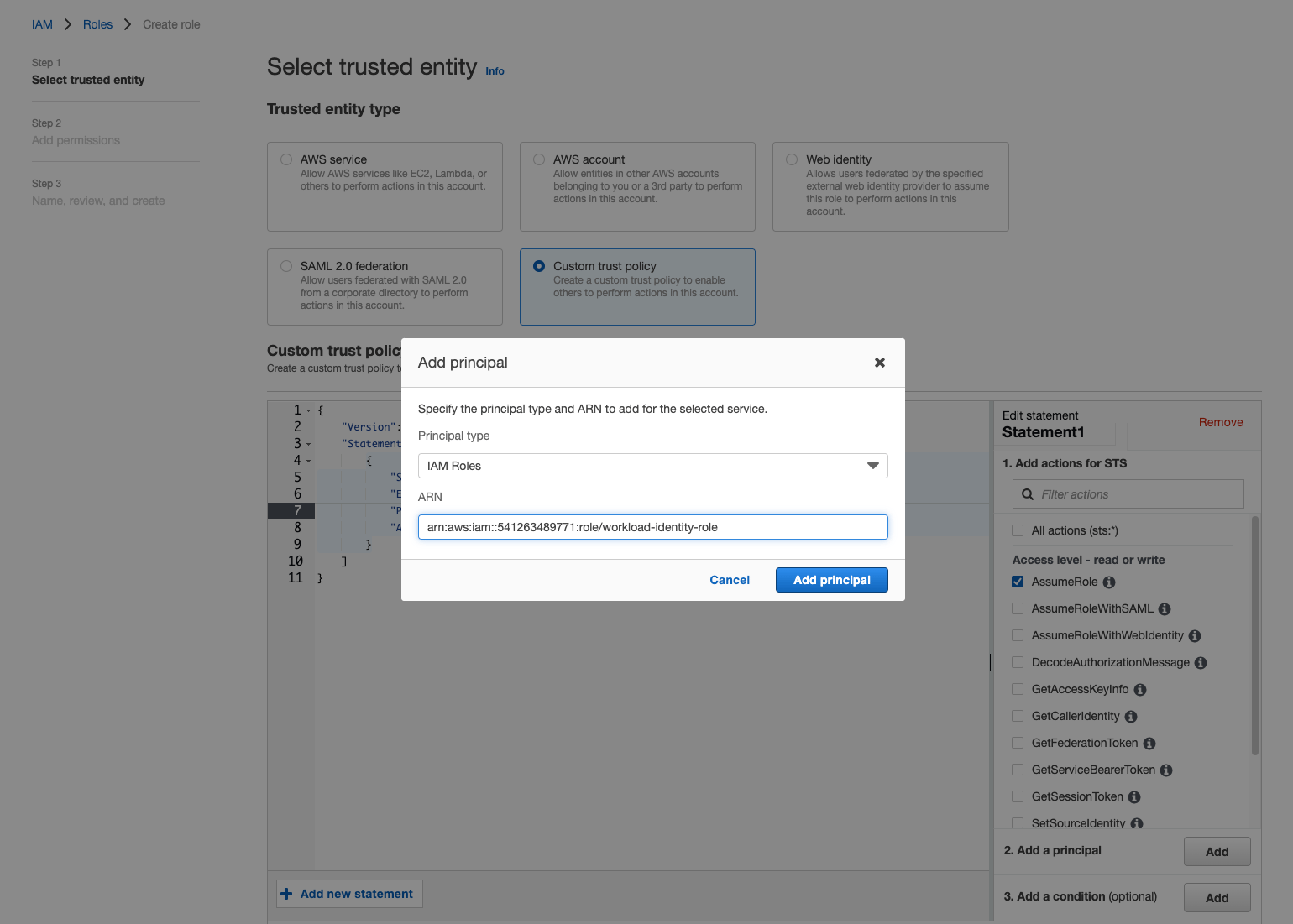

    Dialog box to add principal with IAM roles selected

  2. On the Add Permissions page, search for the permission policies that the role will need to complete the bulk operation.

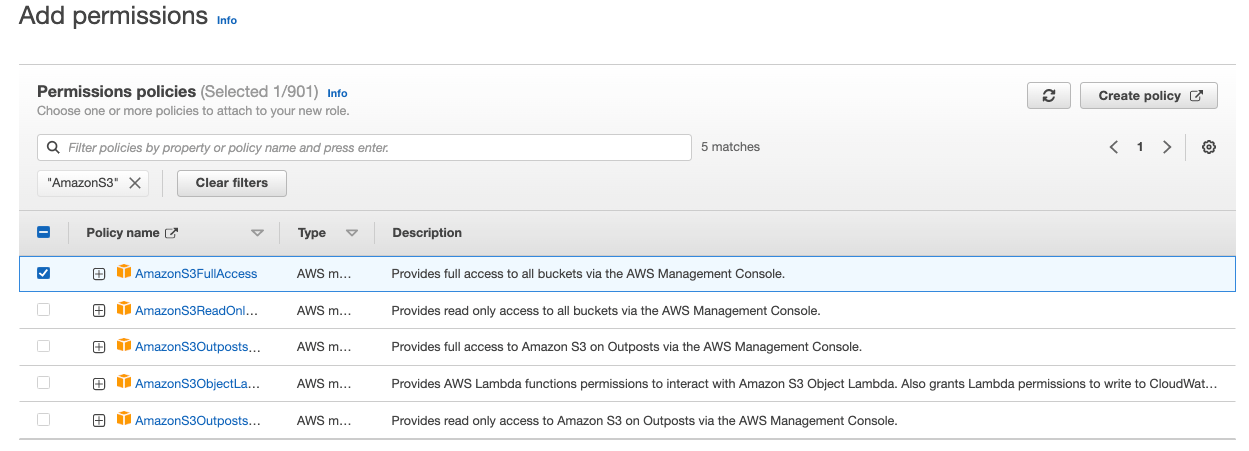

    Filter list to add permissions to IAM roles

    Or, use the Create Policy button to define the required permissions. You can use the visual editor to select the service, actions, and resources.

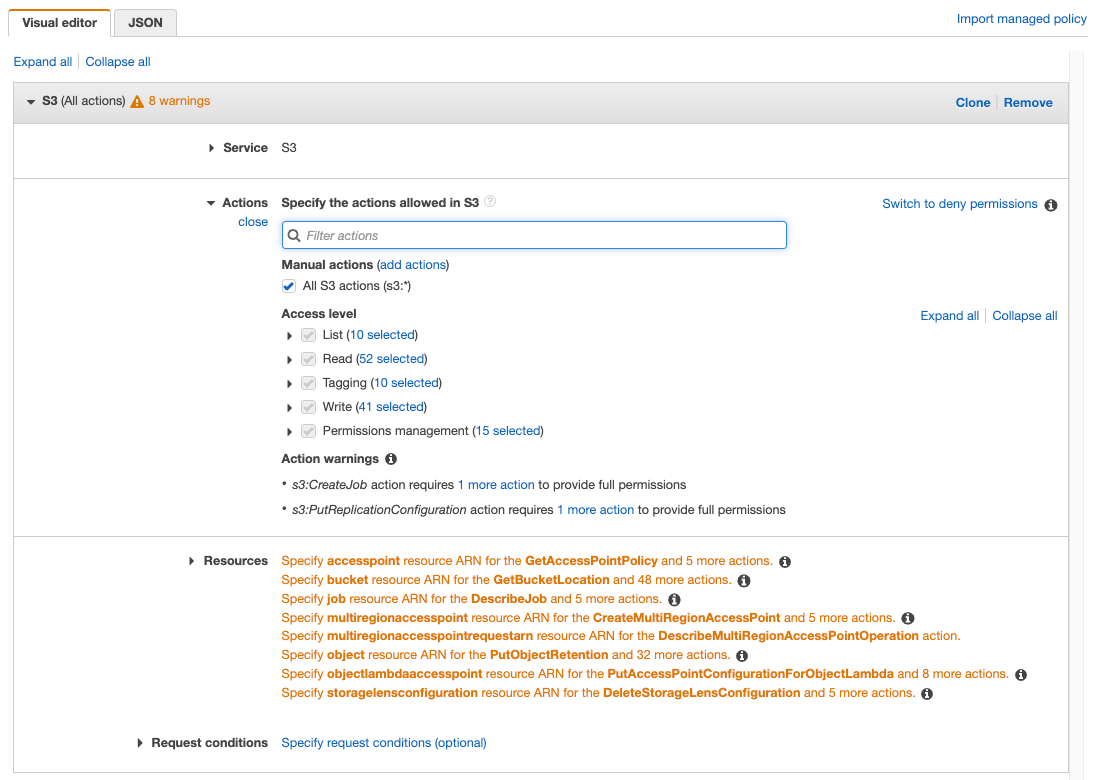

    Using the visual editor to define S3 service and S3 actions.

    Or, use the JSON tab to specify the policy. For the JSON editor, see Storage Permissions for an example and detail on the minimum permissions required for each operation to complete. Click Next.

  3. Finally, give the role a name on the Name, review, and create page. The following screenshot shows the selected trust policy and permissions:

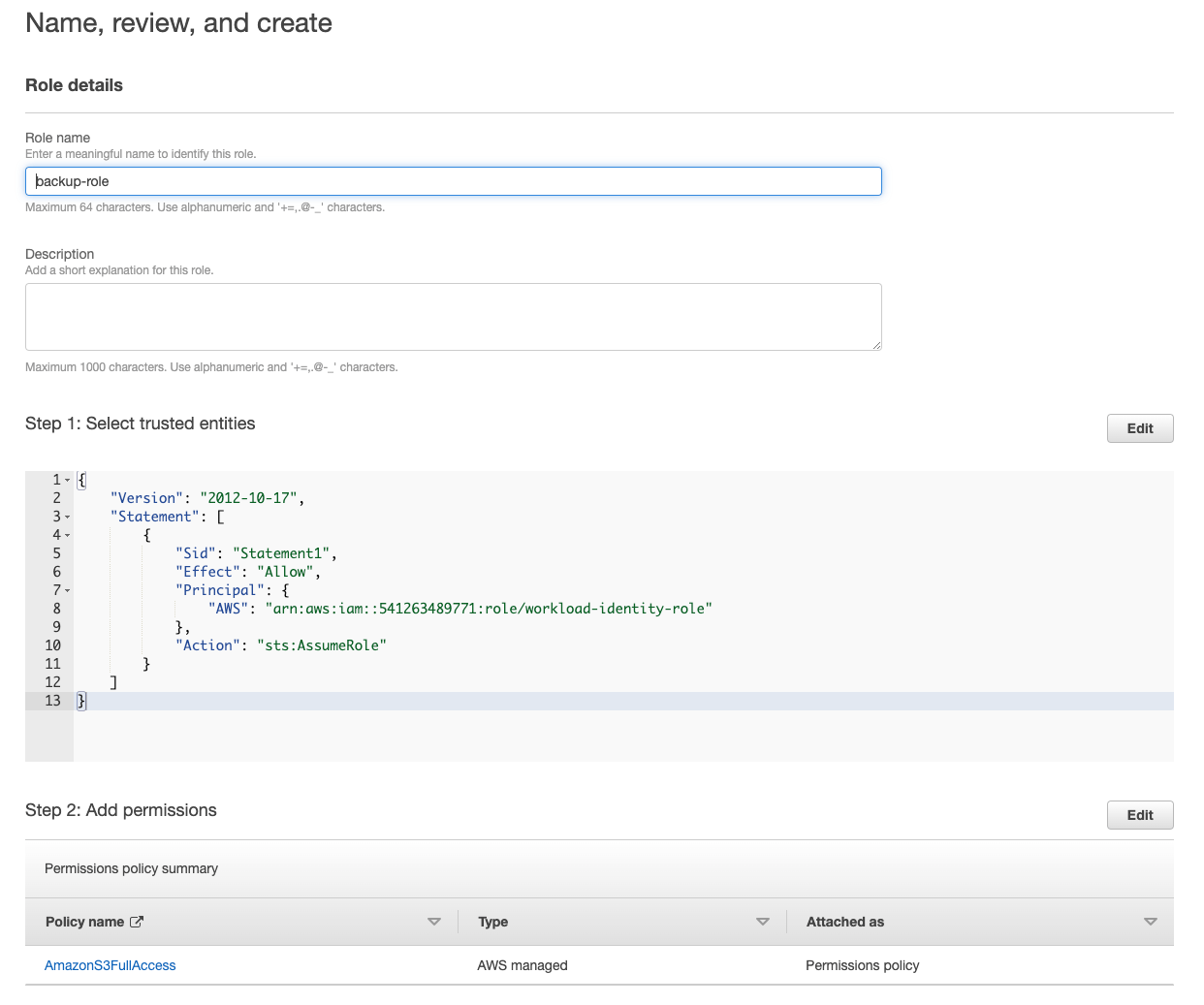

    Final screen in the create role process to review permissions and name role

Step 3. Run the operation by assuming the role

Finally, you'll use the ASSUME_ROLE parameter in your SQL statement to assume a role that contains the necessary permissions. In this step, ensure you read the section for your cluster type:

Run the operation from a CockroachDB Dedicated cluster

To run an operation, use implicit authentication so that your AWS cluster can authenticate directly. To the ASSUME_ROLE parameter, pass the pre-configured identity role from Step 1 followed by a comma, and finally the operation role(s) you need the identity to assume.

For a backup to Amazon S3:

BACKUP DATABASE {database} INTO 's3://{bucket name}/{path}?AUTH=implicit&ASSUME_ROLE=arn:aws:iam::{AWS account ID}:role/crl-dr-store-user-{cluster ID suffix},arn:aws:iam::{account ID}:role/{operation role name}' AS OF SYSTEM TIME '-10s';

In this SQL statement, the identity role assumes the operation role that has permission to write a backup to the S3 bucket.

Run the operation from a CockroachDB Self-hosted cluster

To run an operation, you can use implicit authentication for your identity role and pass the ASSUME_ROLE parameter for your operation role.

For a backup to Amazon S3:

BACKUP DATABASE {database} INTO 's3://{bucket name}/{path}?AUTH=implicit&ASSUME_ROLE=arn:aws:iam::{account ID}:role/{operation role name}' AS OF SYSTEM TIME '-10s';

In this SQL statement, AUTH=implicit uses the identity role to authenticate to the S3 bucket. The identity role then assumes the operation role that has permission to write a backup to the S3 bucket.

You can use the following authentication options for Google Cloud Storage buckets and Google Cloud Pub/Sub changefeed sinks:

  • Specified: You specify the Google Cloud credentials key in the URI when connecting.
  • Implicit: You store the needed Google Cloud credentials as environment variables, and may omit them when connecting. As an alternative, you can use implicit authentication with the service account that CockroachDB Cloud automatically creates and manages for each CockroachDB Dedicated cluster to avoid storing any credentials in your cluster.

To have users assume IAM roles to complete operations on a Google Cloud Storage bucket, you can also configure assume role authentication in addition to specified or implicit. If your CockroachDB cluster is deployed on Kubernetes, you can use workload identities with assume role authentication.

Google Cloud Storage specified

To access the storage bucket with specified credentials, it's necessary to create a service account and add the service account address to the permissions on the specific storage bucket.

The JSON credentials file for authentication can be downloaded from the Service Accounts page in the Google Cloud Console and then base64-encoded:

icon/buttons/copy
cat gcs_key.json | base64

Include AUTH=specified and pass the encoded JSON object to the CREDENTIALS parameter:

icon/buttons/copy
BACKUP DATABASE <database> INTO 'gs://{bucket name}/{path}?AUTH=specified&CREDENTIALS={encoded key}';

Google Cloud Storage implicit

Note:

CockroachDB supports assume role authentication on clusters running CockroachDB v22.2 and above. On earlier versions, an attempt to authenticate to cloud storage with ASSUME_ROLE will result in failed bulk operations.

To limit the control access to your Google Cloud Storage buckets, you can create service accounts for another service account to assume. Service accounts do not necessarily have an association to a particular user. The service account contains permissions that define the operations a user, who has access to the service account, can complete. A service account can then assume another service account to undertake a CockroachDB backup, restore, import, etc. As a result, a service account with limited privileges only has access to the roles of the assumed service account, rather than having unlimited access to a GCS bucket.

The access is also limited by the generated short-lived credentials. The service account/role that is assuming another role will issue the request for the short-lived credentials. If there are multiple roles in the chain, then each role defined in the chain will issue the request for credentials for the next role in the chain. For CockroachDB instances that are running within a Google Cloud Environment, environment data can be used from the service account to implicitly access resources within the storage bucket.

To use implicit authentication on a CockroachDB Cloud cluster, it is necessary to authenticate using assume role authentication. See Set up Google Cloud Storage assume role for more details about configuring the role and service account.

You can grant a user the EXTERNALIOIMPLICITACCESS system-level privilege to interact with external resources that require implicit access.

For CockroachDB clusters running in other environments, implicit authentication access can still be set up manually with the following steps:

Use implicit authentication with your own service account

For self-hosted deployments, follow these instructions. For CockroachDB Dedicated deployments, you can either follow these instructions or you can use implicit authentication together with the service account that CockroachDB Cloud automatically creates.

  1. Create a service account and add the service account address to the permissions on the specific storage bucket.

  2. Download the JSON credentials file from the Service Accounts page in the Google Cloud Console to the machines that CockroachDB is running on. (Since this file will be passed as an environment variable, it does not need to be base64-encoded.) Ensure that the file is located in a path that CockroachDB can access.

  3. Create an environment variable instructing CockroachDB where the credentials file is located. The environment variable must be exported on each CockroachDB node:

    icon/buttons/copy
    export GOOGLE_APPLICATION_CREDENTIALS="/{cockroach}/gcs_key.json"


    Alternatively, to pass the credentials using systemd, use systemctl edit cockroach.service to add the environment variable Environment="GOOGLE_APPLICATION_CREDENTIALS=gcs-key.json" under [Service] in the cockroach.service unit file. Then, run systemctl daemon-reload to reload the cockroach.service unit file with the updated configuration. Restart the cockroach process on each of the cluster's nodes with systemctl restart cockroach, which will reload the configuration files.

    To pass the credentials using code, see Google's Authentication documentation.

  4. Run a backup (or other bulk operation) to the storage bucket with the AUTH parameter set to implicit:

    icon/buttons/copy
    BACKUP DATABASE <database> INTO 'gs://{bucket name}/{path}?AUTH=implicit';

Note:

If the use of implicit credentials is disabled with the --external-io-disable-implicit-credentials flag, you will receive an error when you access external cloud storage services with AUTH=implicit.

Use implicit authentication with CockroachDB Dedicated

For a CockroachDB Dedicated cluster, you can either use implicit authentication with your own service account or you can follow these instructions to use implicit authentication with the service account that CockroachDB Cloud automatically creates and manages for each CockroachDB Dedicated cluster. This service account is named according to the pattern crl-dr-store-user-{CLUSTER_ID_SUFFIX}@{PROJECT_ID}.iam.gserviceaccount.com, where {CLUSTER_ID_SUFFIX} is the last 12 digits of the cluster's and {PROJECT_ID} is the ID of your GCP project. This service account is automatically granted the permission to write to the cluster's storage. One benefit of this approach is that no additional credentials needs to be added to the cluster.

For example, to initiate a manual backup on a CockroachDB Dedicated cluster using implicit auth with the crl-dr-store-user-{CLUSTER_ID} service account:

icon/buttons/copy
BACKUP INTO 'gs://{bucket name}/{path}?&AUTH=implicit&ASSUME_ROLE=crl-dr-store-user-{CLUSTER_ID_SUFFIX}@{PROJECT_ID}.iam.gserviceaccount.com'

Replace:

  • {CLUSTER_ID_SUFFIX}: the last 12 digits of the cluster's ID.
  • {PROJECT_ID}: The ID of your GCP project.

Set up Google Cloud Storage assume role

In the following example, we will configure service account A to assume service account B. In this way, service account A will be able to assume the role of service account B to complete a bulk operation to a GCS bucket.

For this example, both service accounts have already been created. If you need to create your own service accounts, see Google Cloud's Creating and managing service accounts page.

  1. First, you'll create a role that contains a policy to interact with the Google Cloud Storage bucket depending on the bulk operation your user needs to complete. This role will be attached to service account B in order that service account A can assume it.

    • In Google's Cloud console, click IAM & Admin, Roles, and then Create Role.
    • Add a title for the role and then click Add Permissions. Filter for the permissions required for the bulk operation. For example, if you want to enable service account B to run a changefeed, your role will include the storage.objects.create permission. See the Storage permissions section on this page for details on the minimum permissions each CockroachDB bulk operation requires.

    Adding permissions to a changefeed role when creating a role.

    Tip:

    Alternately, you can use the gcloud CLI to create roles.

  2. The service account that will be assumed (B in this case) must be granted access to the storage bucket with the role assigned from step 1.

    • Go to the Cloud Storage menu and select the bucket. In the bucket's menu, click Grant Access.
    • Add the service account to the Add principals box and select the name of the role you created in step 1 under Assign roles.

    Adding service account with the created role to the bucket.

  3. Next, service account B needs the "Service Account Token Creator" role for service account A. This enables service account B to create short-lived tokens for A.

    • Go to the Service Accounts menu in the Google Cloud Console.
    • Select service account B from the list, then the Permissions tab, and click Grant Access under Principals with access to this service account.
    • Enter the name of service account A into the New principals box and select "Service Account Token Creator" under the Assign roles dropdown. Click Save to complete.

    Granting service account A access to service account B with the token creator role.

  4. Finally, you will run the bulk operation from your CockroachDB cluster. If you're using specified authentication, pass in the GCS bucket's URL with the IAM user's CREDENTIALS. If you're using implicit authentication, specify AUTH=IMPLICIT instead. For assuming the role, pass the assumed role's service account name, which you can copy from the Service Accounts page:

    icon/buttons/copy
    BACKUP DATABASE <database> INTO 'gs://{bucket name}/{path}?AUTH=implicit&ASSUME_ROLE={service account name}@{project name}.iam.gserviceaccount.com';


    CockroachDB also supports authentication for assuming roles when taking encrypted backups. To use with an encrypted backup, pass the ASSUME_ROLE parameter to the KMS URI as well as the bucket's:

    icon/buttons/copy
    BACKUP DATABASE <database> INTO 'gs://{bucket name}/{path}?AUTH=implicit&ASSUME_ROLE={service account name}@{project name}.iam.gserviceaccount.com' WITH kms = 'gs:///projects/{project name}/locations/us-east1/keyRings/{key ring name}/cryptoKeys/{key name}?AUTH=IMPLICIT&ASSUME_ROLE={service account name}@{project name}.iam.gserviceaccount.com';


    For more information on Google Cloud Storage KMS URI formats, see Take and Restore Encrypted Backups.

    Note:

    CockroachDB supports assume role authentication for changefeeds emitting to Google Cloud Pub/Sub sinks. The process to set up assume role for Pub/Sub works in a similar way, except that you will provide the final service account with the "Pub/Sub Editor" role at the project level. See the Changefeed Sinks page for more detail on the Pub/Sub sink.

Google Cloud Storage role chaining

Role chaining allows a service account to assume a role through an intermediate service account(s) instead of the service account directly assuming a role. In this way, the role chain passes the request for access to the final role in the chain. Role chaining could be useful when a third-party organization needs access to your Google Cloud Storage bucket to complete a bulk operation. Or, your organization could grant roles based on limited-privilege levels.

Following from the previous setup section, if you want to add an intermediate account to the chain of roles, it is necessary to ensure each service account has granted the "Service Account Token Creator" role to the previous account in the chain. See step 3 in the previous section to add this role on a service account.

In a chain of three roles, A, B, C:

Service Account A ← Service Account B (intermediate accounts) ← Service Account C (final account)
Credentials included in AUTH=implicit or specified Grants access to A with the Service Account Token Creator role Grants access to B with the Service Account Token Creator role
Access to the resource e.g., storage bucket
  • The initial account (A) requests permissions from account B.
  • The intermediate account (B) will delegate the request to account C.
  • The final service account (C) will request the credentials that account A requires.

When passing a chained role into BACKUP, it will follow this pattern with each chained role separated by a , character:

icon/buttons/copy
BACKUP DATABASE <database> INTO 'gs://{bucket name}/{path}?AUTH=implicit&ASSUME_ROLE={intermediate service account name}@{project name}.iam.gserviceaccount.com,{final service account name}@{project name}.iam.gserviceaccount.com'; AS OF SYSTEM TIME '-10s';

Google Cloud Storage workload identity

With a CockroachDB cluster deployed on Kubernetes, you can allow your pods to authenticate as an IAM service account that you have associated to a Kubernetes service account. You can then use assume role authentication to allow the IAM service account to assume another service account that has permissions to perform bulk operations to a Google Cloud Storage bucket.

This means that a CockroachDB node will only be able to access credentials for the IAM service account associated with the Kubernetes service account.

You can use workload identities with assume role authentication to run the following operations:

Note:

Service accounts in Google and Kubernetes refer to different resources. See Google's documentation for definitions.

To use assume role authentication, you will need at least two IAM roles:

  • An identity service account: the IAM service account associated with your Kubernetes service account.
  • An operation service account: the IAM service account to be assumed. This contains the permissions required to complete a CockroachDB operation.

For a walkthrough on how to set this up for CockroachDB Self-Hosted and CockroachDB Dedicated clusters, see the following steps.

Step 1. Set up the Google Cloud workload identity

The first step to setting up workload identity authentication is different for CockroachDB Self-Hosted and CockroachDB Dedicated clusters. As you work through the step, ensure you use the relevant section for your cluster:

Set up the identity service account for Dedicated clusters

Each CockroachDB Dedicated cluster has a pre-configured IAM role for Google Kubernetes Engine service accounts that acts as the cluster's identity. In addition, the clusters have a unique, built-in functionality IAM role, which you can configure as a trusted identity by giving it access to an operation service account. This allows you to have the built-in IAM role assume another role (or roles as part of a chain). This section will refer to the built-in IAM role as the "identity service account".

The prefixes for the built-in IAM identity roles are as follows, which become part of your Google identity service account name:

IAM role name Operation
crl-dr-store-user Backup, Restore, Import, Export
crl-cdc-sink-user Changefeeds
crl-kms-user Encrypted backups and restores

Construct the service account name for your identity service account. You will need this to add to the operation role or intermediary role. The identity service account name follows this pattern (in this example the crl-dr-store-user role name is used for a backup):

icon/buttons/copy
crl-dr-store-user-{cluster id suffix}@{project id}.iam.gserviceaccount.com

You can find the GCP project ID and your cluster's ID using the Cloud API:

icon/buttons/copy
curl --request GET --url 'https://cockroachlabs.cloud/api/v1/clusters' --header 'Authorization: Bearer {secret key}'

Use the last 12 digits of your cluster's id and the account_id to form the service account. (Note that the account_id in your cluster's details becomes the GCP {project id}.)

This will look similar to:

icon/buttons/copy
crl-dr-store-user-d1234567891d@crl-prod-6tc.iam.gserviceaccount.com

See Step 2 to create an operation service account that your identity role can assume.

Note:

If you already have the service account that contains permissions for the operation, ensure that you give the identity service account access to this service account. Click on your service account and navigate to the Permissions tab. Then, use the process in step 3 to complete this.

Set up the identity service account for Self-hosted clusters

Before completing the steps to run a bulk operation with assume role, it is necessary to create an identity service account for your Kubernetes service account to assume. Then, you must configure your CockroachDB pods to use the Kubernetes service account. You can complete all of these steps with Google's guide Use Workload Identity.

Once you have an identity service account that your CockroachDB nodes can assume, you can configure the identity role to assume another service account role that contains the permissions to perform the bulk operation.

Before moving on to the next step, copy the service account name of the identity service account. In the Google Cloud Console, navigate to the IAM section, Service Accounts, and then the name of your identity service account. From the list view, copy the name of your identity service account. You will need to add this to the operation service account to be assumed.

See Step 2 to create an operation service account that your identity role can assume.

Note:

If you already have the service account that contains permissions for the operation, ensure that you give the identity service account access to this service account. Click on your service account and navigate to the Permissions tab. Then, use the process in step 3 to complete this.

Step 2. Create the operation service account

  1. Create the operation service account that your identity service account will assume.

    a. To create a service account, click Create Service Account under the Service Accounts menu. Enter a name for the service account and click Create and Continue.

    b. In the Grant this service account access to project section, select the role you require for the bulk operation, e.g., "Storage Object Creator". See Storage Permissions for detail on the minimum permissions required for each operation to complete. Click Continue.

    Adding the workload identity role to the service account users role box

    c. In the Grant users access to this service account section, paste the name of the identity service account. Then, click Done.

    Adding the workload identity role to the service account users role box

Step 3. Give the identity service account the token creator role

Next, the operation service account needs to contain the "Service Account Token Creator" role for the identity service account. This enables the operation service account to create short-lived tokens for the identity service account.

  1. Go to the Service Accounts menu in the Google Cloud Console.
  2. Select the operation service account from the list, then the Permissions tab, and click Grant Access under Principals with access to this service account.
  3. Enter the name of the identity service account into the New principals box and select "Service Account Token Creator" under the Assign roles dropdown. Click Save to complete.

    Granting the identity service account access to the operation service account with the token creator role.

Step 4. Run the operation by assuming the service account

Finally, you'll use the ASSUME_ROLE parameter in your SQL statement to assume a role that contains the necessary permissions. In this step, ensure you read the section for your cluster type:

Run the operation from a CockroachDB Dedicated cluster on GCP

To run an operation, use implicit authentication so that your GCP cluster can authenticate directly. To the ASSUME_ROLE parameter, pass the pre-configured identity role from Step 1 followed by a comma, and finally the operation role(s) you need the identity to assume.

For a backup to Google Cloud Storage:

icon/buttons/copy
BACKUP DATABASE defaultdb INTO "gs://{bucket name}?AUTH=implicit&ASSUME_ROLE=crl-dr-store-user-{cluster ID suffix}@{project ID}.iam.gserviceaccount.com,{operation service account name}@{project name}.iam.gserviceaccount.com" AS OF SYSTEM TIME '-10s';

In this SQL statement, the identity service account assumes the operation service account that has permission to write a backup to the GCS bucket.

Run the operation from a CockroachDB Self-hosted cluster on GCP

To run the bulk operation, you can use implicit authentication for your identity service account and pass the ASSUME_ROLE parameter for your operation service account.

For a backup to your Google Cloud Storage bucket:

icon/buttons/copy
BACKUP DATABASE {database} INTO 'gs://{bucket name}/{path}?AUTH=implicit&ASSUME_ROLE={operation service account}@{project name}.iam.gserviceaccount.com'; AS OF SYSTEM TIME '-10s';

In this SQL statement, AUTH=implicit uses the workload identity service account to authenticate to the bucket. The workload identity role then assumes the operation service account that has permission to write a backup to the bucket.

Azure Blob Storage specified authentication

You can authenticate to Azure with explicit credentials in the following ways:

  • Define the AUTH=specified parameter with:

    • AZURE_ACCOUNT_NAME: Name of your Azure account.
    • AZURE_CLIENT_ID: Application (client) ID for your App Registration.
    • AZURE_CLIENT_SECRET: Client credentials secret generated for your App Registration.
    • AZURE_TENANT_ID: Directory (tenant) ID for your App Registration.
    azure-blob://{container name}?AUTH=specified&AZURE_ACCOUNT_NAME={account name}&AZURE_CLIENT_ID={client ID}&AZURE_CLIENT_SECRET={client secret}&AZURE_TENANT_ID={tenant ID}


    You can authenticate to Azure Storage and Azure Key Vault with this URI format.

  • Specify your container name with:

    • AZURE_ACCOUNT_NAME: Name of your Azure account.
    • AZURE_ACCOUNT_KEY: Key generated for your Azure account.
    • (optional) AZURE_ENVIRONMENT

    It is necessary to URL encode the account key since it is base64-encoded and may contain +, /, = characters.

    azure-blob://{container name}?AZURE_ACCOUNT_NAME={account name}&AZURE_ACCOUNT_KEY={url-encoded key}&AZURE_ENVIRONMENT=AZUREUSGOVERNMENTCLOUD

    Note:

    For changefeeds, you must use the azure:// scheme. For all other jobs, the azure:// and azure-storage:// schemes are also supported for backward compatibility, though azure-blob:// is recommended.

Azure Blob Storage implicit authentication

Note:

Implicit authentication to Azure is only available for CockroachDB Self-Hosted clusters.

When the AUTH parameter is set to implicit, CockroachDB will load credentials from one of the following:

  • A credentials file with the path specified in the environment variable COCKROACH_AZURE_APPLICATION_CREDENTIALS_FILE. Refer to Set up a credentials file.
  • Each credential set as an environment variable.
    • AZURE_CLIENT_ID: Application (client) ID for your App Registration.
    • AZURE_CLIENT_SECRET: Client credentials secret generated for your App Registration.
    • AZURE_TENANT_ID: Directory (tenant) ID for your App Registration.
  • An Azure managed identity.

You can use this for authenticating an Azure Blob Storage URI or an Azure Key Vault URI for an Azure encrypted backup.

Note:

You must export the environment variable on each CockroachDB node.

Set up a credentials file

To set up implicit authentication to Azure Blob Storage (or a KMS resource), you will need to:

  1. Create a credentials.yaml file on a path that CockroachDB can access. The credentials file in YAML format must contain:

    azure_tenant_id: {tenant ID}
    azure_client_id: {client ID}
    azure_client_secret: {client secret}


    Replace the values in {...} with your credentials:

    • azure_client_id: Application (client) ID for your App Registration.
    • azure_client_secret: Client credentials secret value generated for your App Registration.
    • azure_tenant_id: Directory (tenant) ID for your App Registration.

    When you implement role-based access control through an Azure App Registration to Azure Storage, it is necessary to grant the App Registration permission to the container. Use the Storage Blob Data Contributor built-in role to grant read, write, and delete access. Refer to Microsoft's Assign an Azure role for access to blob data for instructions.

    Refer to Microsoft's Azure Authentication documentation to set this up.

  2. You can pass the credentials by exporting as an environment variable or pass the credentials with systemd:

    • Create an environment variable instructing CockroachDB where the credentials file is located. The environment variable must be exported on each CockroachDB node:

      icon/buttons/copy
      export COCKROACH_AZURE_APPLICATION_CREDENTIALS_FILE="/{path}/credentials.yaml"

    • Alternatively, to pass the credentials using systemd, edit the cockroach unit file:

      icon/buttons/copy

      systemctl edit cockroach.service


      Add the environment variable under [Service]:

      icon/buttons/copy
      Environment="COCKROACH_AZURE_APPLICATION_CREDENTIALS_FILE=/{path}/credentials.yaml"


      Reload the cockroach.service unit file with the updated configuration:

      icon/buttons/copy
      systemctl daemon-reload


      Restart the cockroach process on each of the cluster's nodes with, which will reload the configuration files:

      icon/buttons/copy
      systemctl restart cockroach

  3. Form the URI to run a job. You must include the container name and Azure account name in your URI along with the AUTH=implicit parameter:

    icon/buttons/copy
    BACKUP DATABASE {database} INTO 'azure-blob://{container name}?AUTH=implicit&AZURE_ACCOUNT_NAME={account name}';

    Note:

    For changefeeds, you must use the azure:// scheme. For all other jobs, the azure:// and azure-storage:// schemes are also supported for backward compatibility, though azure-blob:// is recommended.

HTTP authentication

If your environment requires an HTTP or HTTPS proxy server for outgoing connections, you can set the standard HTTP_PROXY and HTTPS_PROXY environment variables when starting CockroachDB. You can create your own HTTP server with NGINX. A custom root CA can be appended to the system's default CAs by setting the cloudstorage.http.custom_ca cluster setting, which will be used when verifying certificates from HTTPS URLs.

If you cannot run a full proxy, you can disable external HTTP(S) access (as well as custom HTTP(S) endpoints) when importing by using the --external-io-disable-http flag.

S3-compatible services authentication

Warning:

While Cockroach Labs actively tests Amazon S3, Google Cloud Storage, and Azure Storage, we do not test S3-compatible services (e.g., MinIO, Red Hat Ceph).

A custom root CA can be appended to the system's default CAs by setting the cloudstorage.http.custom_ca cluster setting, which will be used when verifying certificates from an S3-compatible service.

See also


Yes No
On this page

Yes No
